Description
16bit Color Reproduction

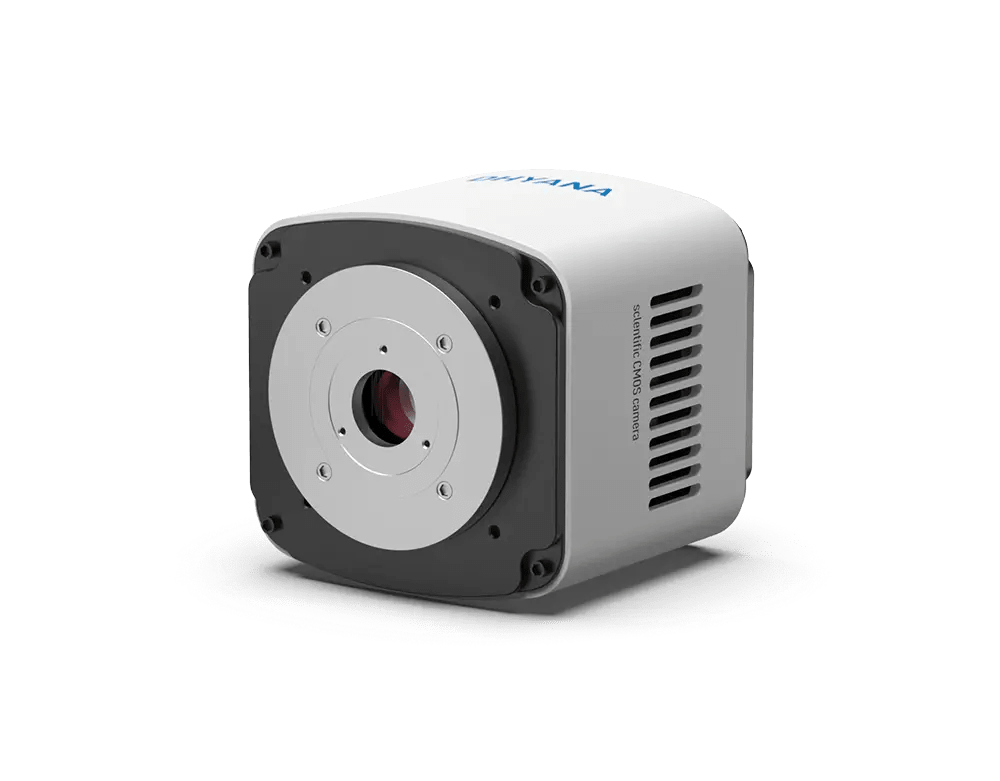

The Dhyana 400DC can process color with a level of precision that imitates the color sensitivity of the human eye, producing extreme-high color definition. The 16-bit ADC guarantees high-quality image tone and ensures detailed differences can be resolved, making the monitor image indistinguishable from the eyepiece view.
Camera Cooling Technology
The Dhyana 400DC operates at -15 °C to ensure long-term reliable operation, significantly reducing the hot pixels caused by the accumulation of dark current, and obtaining a purer fluorescent background image.
Optical Matched Pixel Size
Get the most from your optical setup. 6.5μm pixels perfectly match the ideal pixel size for High-NA 100x, 60x and 40x microscope objectives, offering optimal spatial sampling and sensitivity. This size also offers well-balanced imaging for lens-based optical setups.
Specification
| Model | Dhyana 400DC |
| Sensor Type | FSI sCMOS |
| Sensor Model | Gpixel GSENSE2020s |
| Color/Mono | Color |
| Array Diagonal | 18.8 mm |
| Effective Area | 13.3 mm x 13.3 mm |
| Resolution | 2048 (H) x 2048 (V) |
| Pixel Size | 6.5 μm x 6.5 μm |
| Full-Well Capacity | Typ.:45 ke- |
| Dynamic Range | Typ.:86.6 dB |
| Frame Rate | 22 fps @ 8 bit, 16 fps @ 16 bit |
| Readout Noise | HighGain:1.7 e- |
| Shutter Type | Rolling |
| Exposure Time | 21 μs ~ 10 s |
| Cooling Method | Air |
| Cooling Temperature | 35 ℃ below ambient |
| Dark Current | 0.12 e-/pixel/s @ -10 ℃ |
| Binning | 2 x 2 |
| ROI | Support |
| Trigger Mode | Hardware, Software |
| Output Trigger Signals | Exposure start, Global, Readout end |
| Trigger Interface | SMA |
| Data Interface | USB3.0 |
| Data Bit Depth | 16 bit |
| Optical Interface | C-mount |
| Power Supply | 12 V / 8 A |
| Power Consumption | 50 W |
| Dimensions | 120 mm x 119 mm x 121 mm |
| Weight | 1853 g |
| Software | Mosaic, LabView, Matlab, Micromanager |
| SDK | C, C++, C# |
| Operating System | Windows, Linux |
| Operating Environment | Working:Temperature 0~40 °C, Humidity 0~85% |
| Storage:Temperature 0~60 °C, Humidity 0~90% |
