Description
95% High QE/Low Noise
Rise above dim signals and noisy images. Near-perfect Quantum Efficiency means capturing almost every photon that comes your way. Combined with low noise electronics, capture images with a high signal-to-noise ratio even when signals are weak.
Large Format sCMOS
Extremely large sensor formats offer fantastic imaging efficiency – capture more than ever before in a single snapshot. High pixel counts and large sensor sizes improve your data throughput, recognition precision, and provide additional context for your imaging subjects. In lens-based systems, wide viewing angles combined with fine image resolution become possible.
CXP Interface Drives Speed
Leveraging the world’s leading interface standard for high-speed imaging, you can keep up with dynamic imaging subjects. CoaXPress offers very high-speed and precision data transmission, with the simplicity and long cable lengths of coaxial cable.
Specification

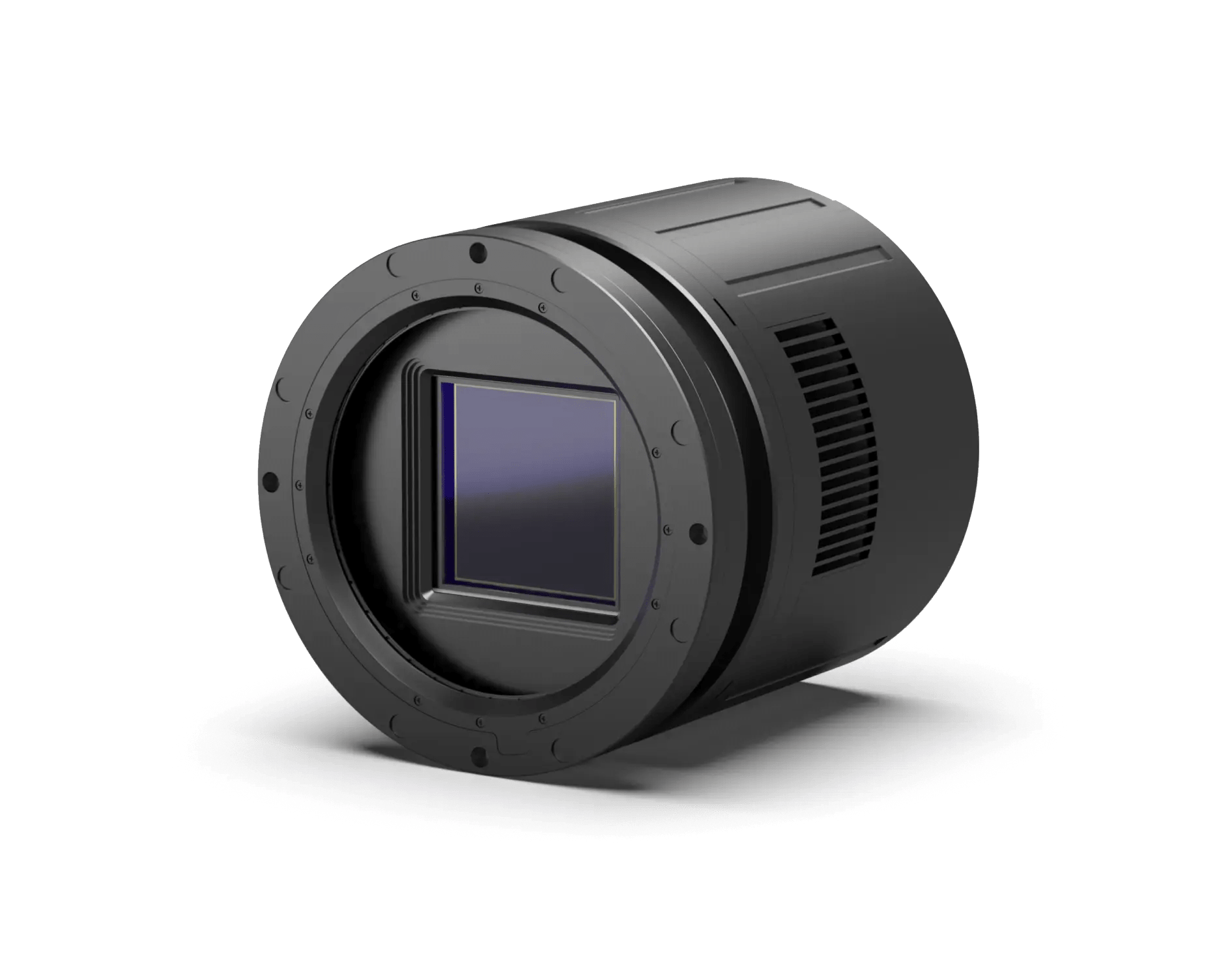

| Model | Dhyana 6060BSI |
| Sensor Type | BSI sCMOS |
| Sensor Model | Gpixel GSENSE6060BSI |
| Peak QE | 95 % @ 580 nm |
| Color / Mono | Mono |
| Array Diagonal | 86.8 mm |
| Effective Area | 61.4 mm x 61.4 mm |
| Resolution | 6144 (H) x 6144 (V) |
| Pixel Size | 10 μm x 10 μm |
| Full-Well Capacity | Typ.: 102 ke- |
| Dynamic Range | Typ.: 90 dB |
| Frame Rate | 26.4 fps @ 12 bit STD, 11.3 fps @ 16 bit HDR, 8.6 fps @ 14 bit STD |
| Shutter Type | Rolling |
| Readout Noise | 3 e- (Median) |
| Exposure Time | 12 μs ~ 300 s |
| DSNU | 1.5 e- |
| PRNU | 0.002 |
| Cooling Method | Air, Liquid |
| Max. Cooling | 45 ℃ below ambient |
| Dark Current | Air:0.25 e-/pixel/s, Liquid: 0.15 e-/pixel/s |
| Binning | 2 x 2, 4 x 4 |
| ROI | Support |
| Timestamp Accuracy | 1 μs |
| GPS | Support |
| Trigger Mode | Hardware, Software |
| Output Trigger Signals | Exposure start, Global, Readout end, High level, Low level |
| Trigger Interface | SMA |
| Data Interface | CoaXPress2.0 |
| Data Bit Depth | 12 bit, 14 bit, 16 bit |
| Optical Interface | User-customization |
| Power Supply | 12 V / 10 A |
| Power Consumption | < 100 W |
| Dimensions | φ 160 mm x 164 mm |
| Weight | 4 kg |
| Software | Samplepro, MAXIMDL, Labview, Matlab, EPICS |
| SDK | C, C++, C# |
| Operating System | Windows, Linux |
| Operating Environment | Working:Temperature -35 ~ 45 ℃ , Humidity 0 ~ 95 % |
| Storage:Temperature -35 ~ 60 ℃ , Humidity 0 ~ 95 % |
