Description

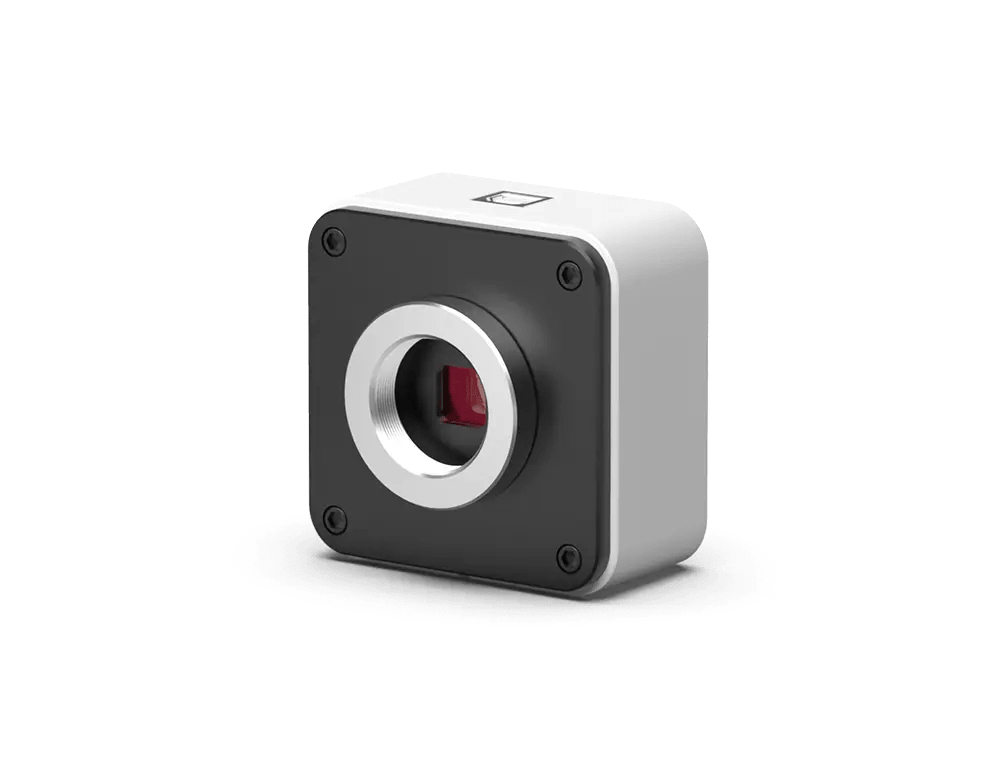

The Fastest USB 2.0 Camera
The GT 2.0 adopts Tucsen’s graphics accelerated technology and may be the fastest USB 2.0 camera available, with a frame rate 5 times faster than ordinary USB 2.0 cameras.
Perfect Color Solutions
Color solutions for biological and industrial applications can be selected to help you always obtain ideal images in different scenarios, such as pathological images with true colors or metal images with wide dynamic effects.
User Friendly Software
The GT imaging software redefines image acquisition, keeping the best operating procedures in an easy-to-use interface, significantly reducing operating time and improving productivity.
Specification
| Model | GT 2.0 |
| Sensor Type | CMOS |
| Sensor Model | SONY IMX323LQN-C |
| Color/Mono | Color |
| Array Diagonal | 6.23mm |
| Resolution | 2MP, 1920(H) x 1080(V) |
| Pixel Size | 2.8μm x 2.8μm |
| Effective Area | 5.4mm x 3.0mm |
| Shutter Mode | Rolling |
| Frame Rate | 30fps@USB2.0 |
| Exposure Time | 1μs-1s941ms |
| PC Software | Mosaic V2 |
| Picture Format | TIFF/JPG/PNG/DICOM |
| Multiple Cameras | Supports 4 Cameras Simultaneously in SDK |
| SDK | C/C++, C#, Directshow/Twain |
| Optical Interface | Standard C Mount |
| Power | 2w |
| Dimensions | 68mm x 68mm x 42.5mm |
| Camera Weight | 236g |
| Operating System | Windows 7/10 (32 Bit/64 Bit)/Mac |
| PC Configuration | CPU: Intel Core i5 or better(Quad or more Core); RAM:8G or more |
| Data Interface | USB2.0 |
| Operating Environment | Temperature:0~40℃; Humidity: 10%~85% |
