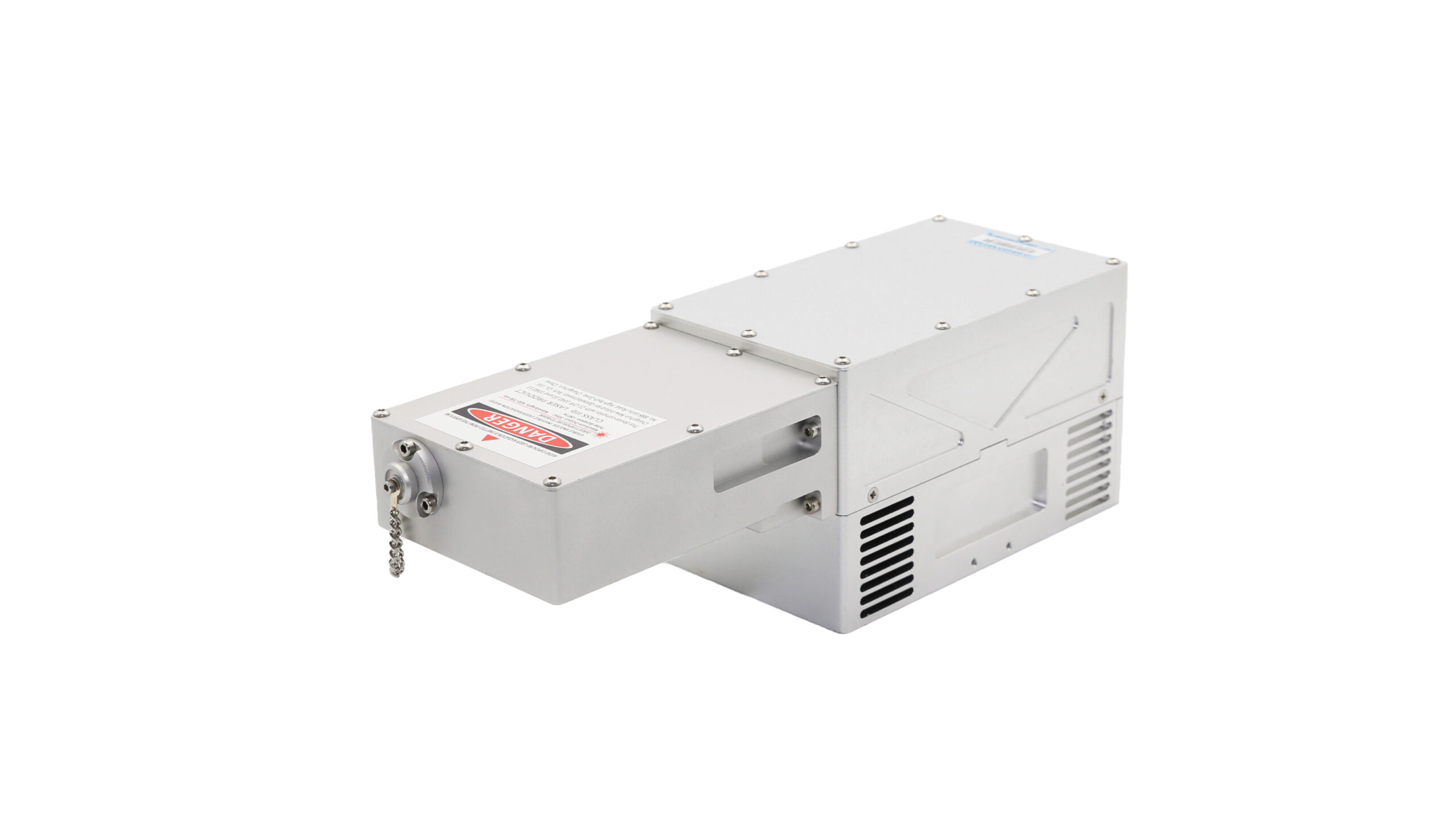

HPL-1064-PA — 1064 nm High-Power Infrared Laser. 1064 nm; 4 W output power. Applications: Infrared laser marking and Precision engraving research.
| Wavelength | 1064±1 nm |
|---|---|
| Repetition Rate | 200 Hz |
| Power Stability (RMS) | <5%, <3% |
| Pulse Width | ~10 ns |
| Beam Height From Base Plate (mm) | 71 mm |
| Beam Divergence (mrad) | <2 mrad |
| Peak Power | 0.5-2 mW |
| Average Power | 1-4 W |
| Operating Temperature (℃) | 15-35 °C |
| Operating Mode | Actively |
| Warm-up Time (minutes) | <10 minutes |
| Beam Diameter At The Aperture (mm,1/e²) | ~4 mm (1/e²) |
| Cooling Method | Water Cooled |
HPL-1064-PA — 1064 nm High-Power Infrared Laser. An infrared laser with a 4 W output rating for marking research and precision optical processing.
Key Specifications: 1064 nm; 4 W output power; RMS stability below 3%.
Potential Applications:
