Description
1064nm, 1064 nm, 1064±1 nm, High Energy Laser, Nanosecond Laser

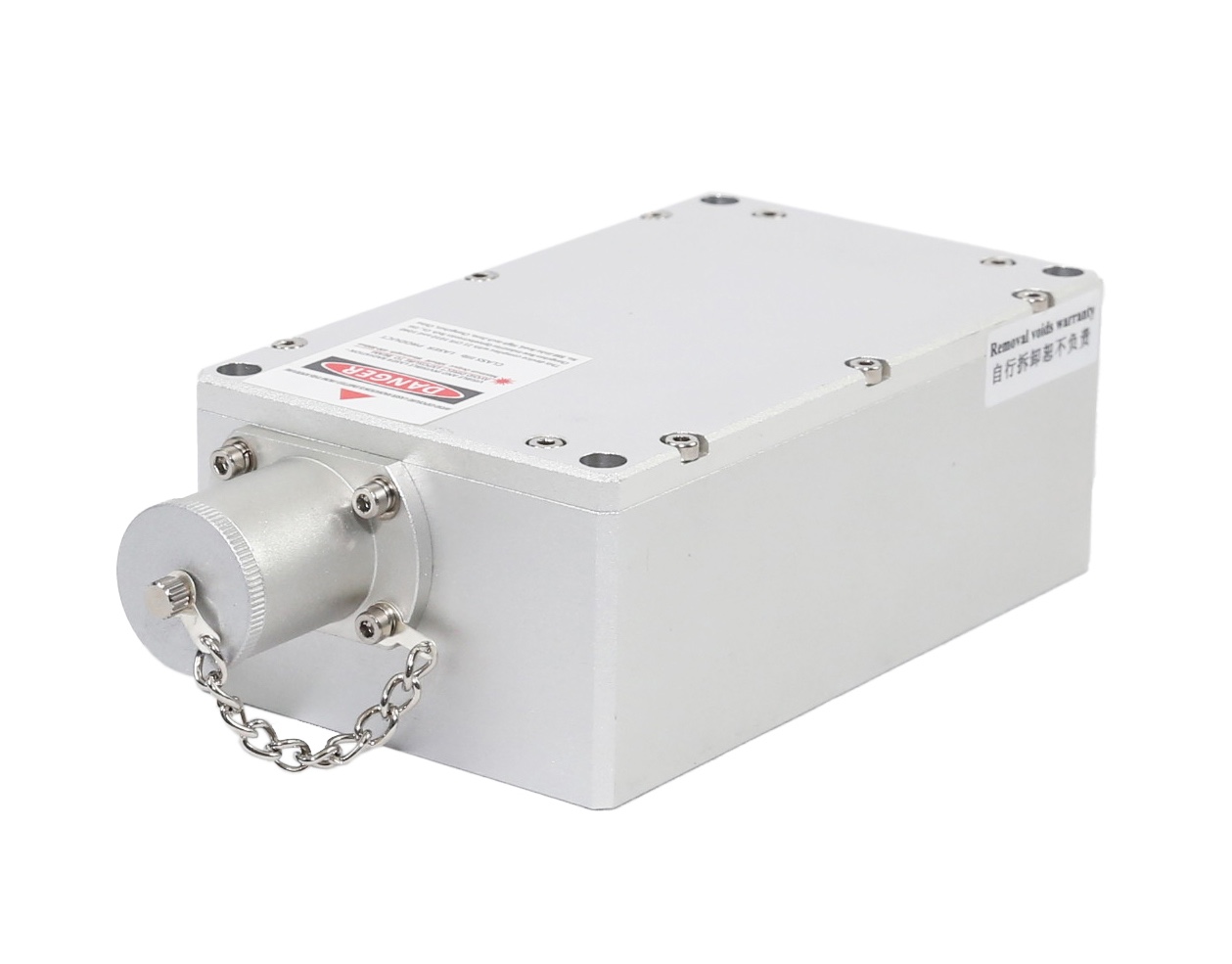

HPL-1064-PB
1064nm, 1064 nm, 1064±1 nm, High Energy Laser, Nanosecond Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~4 |
|---|---|
| Beam Divergence (mrad) | <2 |
| Beam Height From Base Plate (mm) | 71 |
| Central WL | |
| Cooling Method | Water Cooled |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | High Energy Laser, Nanosecond Laser |
| Operating Mode | Electro-Optic Q-switched |
| Operating Temperature (℃) | 15~35 |
| Output Power | 10 W |
| Peak Power | 2 MW |
| Power Stability (RMS) | <3% |
| Power Supply | PSU-HPL-PB 220/110VAC |
| Pulse Width | ~10 ns @500 Hz |
| Repetition Rate | 500 Hz |
| Single Pulse Energy | 20 mJ |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 1064±1 nm |
