Description
1319nm, 1319 nm, 1319±1 nm, High Energy Laser, Nanosecond Laser

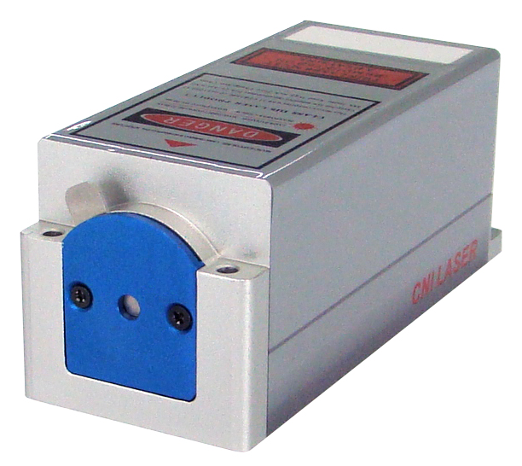

HPL-1319-CW(150-220W)
1319nm, 1319 nm, 1319±1 nm, High Energy Laser, Nanosecond Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | <15 |
|---|---|
| Beam Divergence (mrad) | <3.5 |
| Beam Height From Base Plate (mm) | 61 |
| Central WL | |
| Cooling Method | Water Cooled (Choose water chiller according to power) |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | High Energy Laser, Nanosecond Laser |
| Operating Mode | CW |
| Operating Temperature (℃) | 15~35 |
| Output Power | >150,160, …, 220 W |
| Pilot Light (optional) | 5mW @650nm(optional) |
| Power Stability | <3%, <5% |
| Power Stability (RMS) | <3%, <5% |
| Power Supply | PSU-HPL-CW*2 220/110VAC |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 1319±1 nm |
