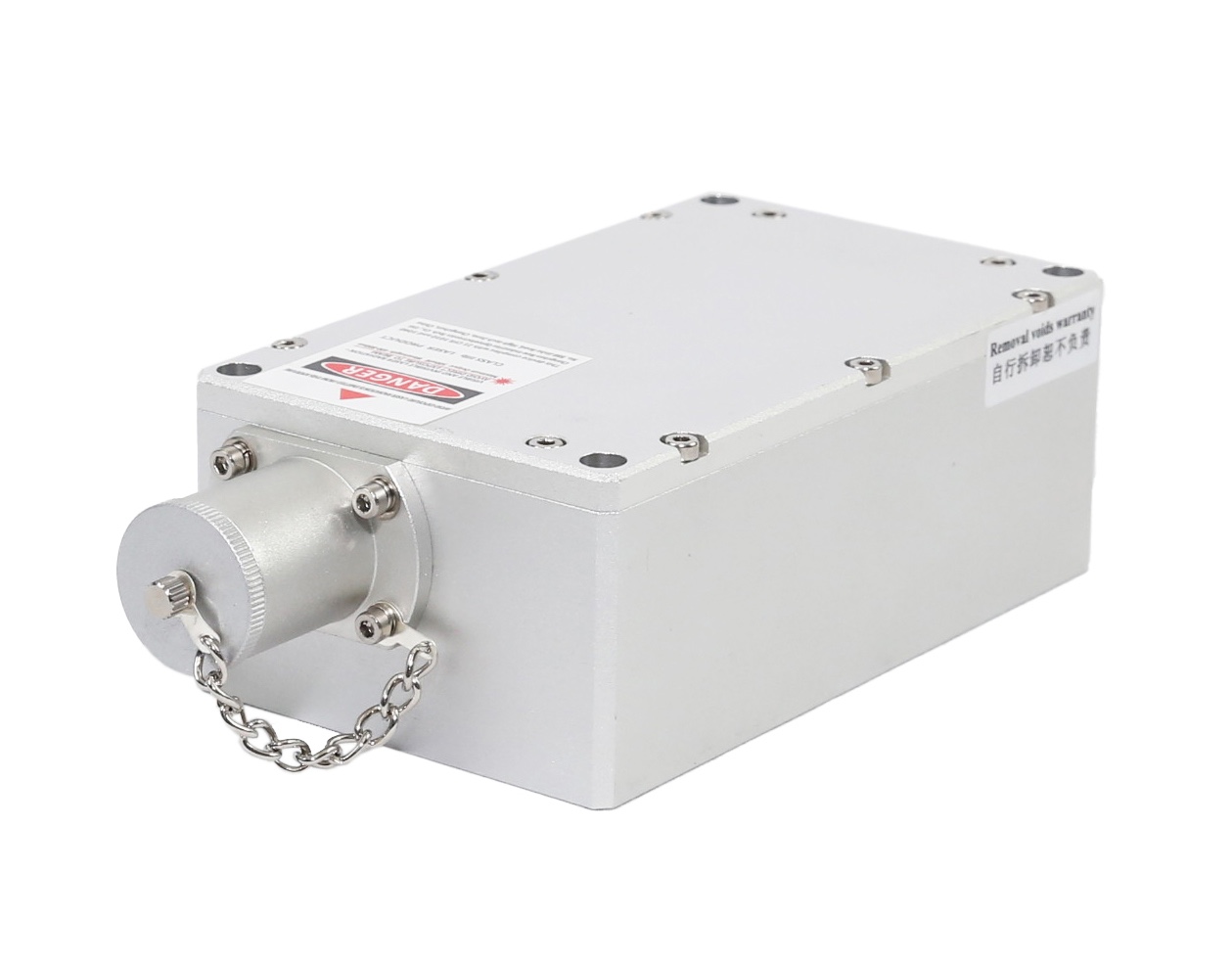

HPL-532-PA — 532 nm pulsed pulsed laser. 532 nm; HPL laser family. Applications: 532 nm nanosecond marking research and Pulsed optical metrology.
| Wavelength | 532±1 nm |
|---|---|
| Repetition Rate | 200 Hz |
| Power Stability (RMS) | <5%, <3% |
| Pulse Width | ~10 ns |
| Beam Height From Base Plate (mm) | 71 mm |
| Beam Divergence (mrad) | <1 mrad |
| Peak Power | 0.5-5 mW |
| Average Power | 1-10 W |
| Operating Temperature (℃) | 15-35 °C |
| Operating Mode | Actively |
| Warm-up Time (minutes) | <10 minutes |
| Beam Diameter At The Aperture (mm,1/e²) | ~8 mm (1/e²) |
| Cooling Method | Water Cooled |
HPL-532-PA — 532 nm pulsed pulsed laser. HPL-532-PA provides 532 nm laser emission for 532 nm nanosecond marking research and pulsed optical metrology.
Key Specifications: 532 nm; HPL laser family.
Potential Applications:
