Description
589.159nm, 589.159 nm, 589.159±0.001 nm, High Energy Laser, Nanosecond Laser

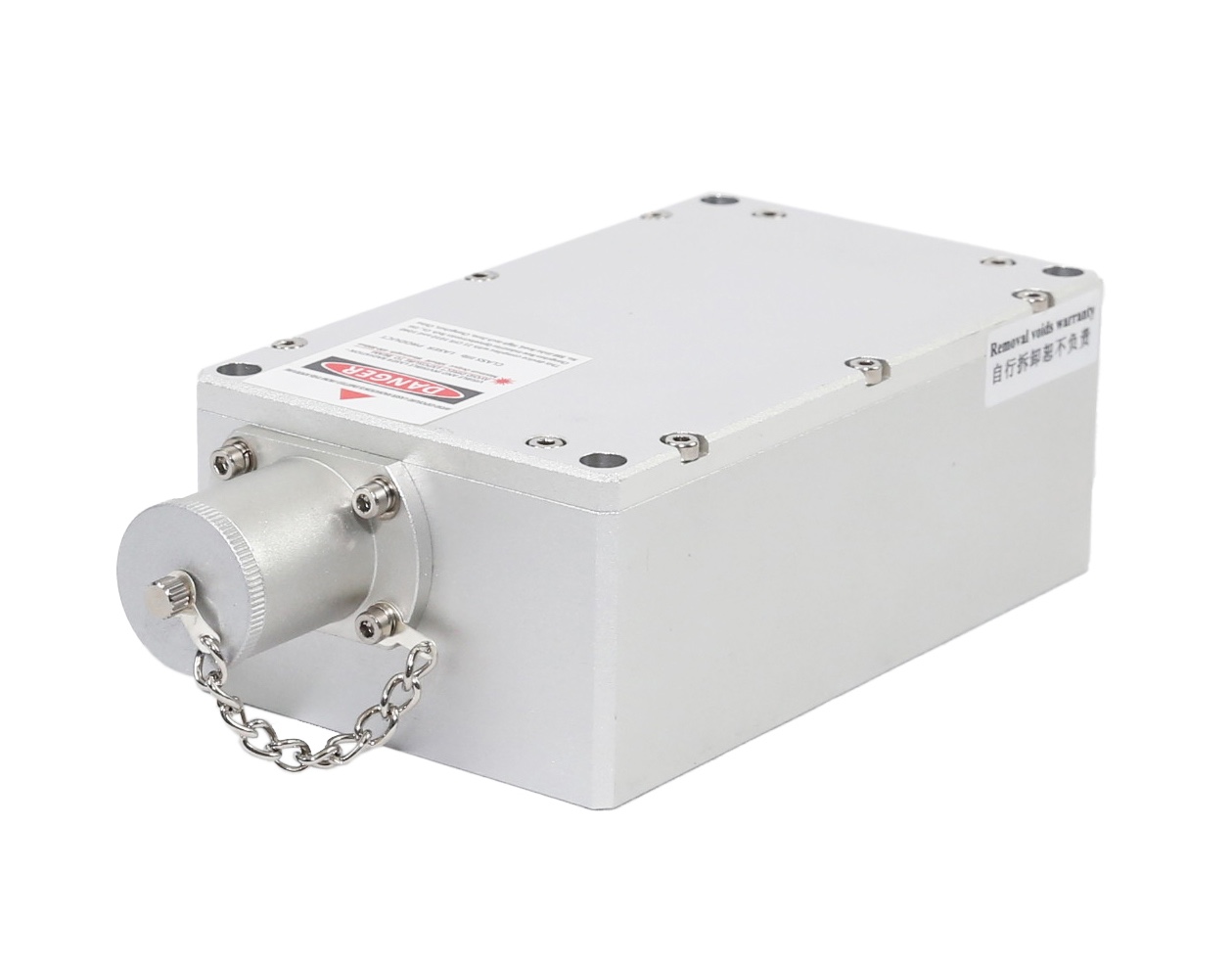

HPL-589.159-Q
589.159nm, 589.159 nm, 589.159±0.001 nm, High Energy Laser, Nanosecond Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~18 |
|---|---|
| Beam Divergence (mrad) | <3 |
| Beam Height From Base Plate (mm) | 90 |
| Central WL | |
| Cooling Method | Water Cooled |
| Expected Lifetime (hours) | 10000 |
| FWHM Linewidth | 3 GHz |
| Laser OEM | CNI laser |
| Laser Tags | High Energy Laser, Nanosecond Laser |
| Operating Mode | Acousto-Optics Q-switched |
| Operating Temperature (℃) | 15~35 |
| Output Power | 1~5 W (fixed) |
| Peak Power | 8 kW |
| Power Stability | <3% or <5% |
| Power Stability (RMS) | <3% or <5% |
| Power Supply | PSU-HPL-589.159 220V AC |
| Pulse Width | 100~150 ns |
| Repetition Rate | 5 kHz |
| Single Pulse Energy | 1 mJ |
| Spectrum Tuning Range（GHz） | 15 |
| Warm-up Time (minutes) | <15 |
| Warranty Period | 1 year |
| Wavelength | 589.159±0.001 nm |
