Description
532nm, 532 nm, 532±1 nm, Lamp Pump Solid State Laser, Nanosecond Laser

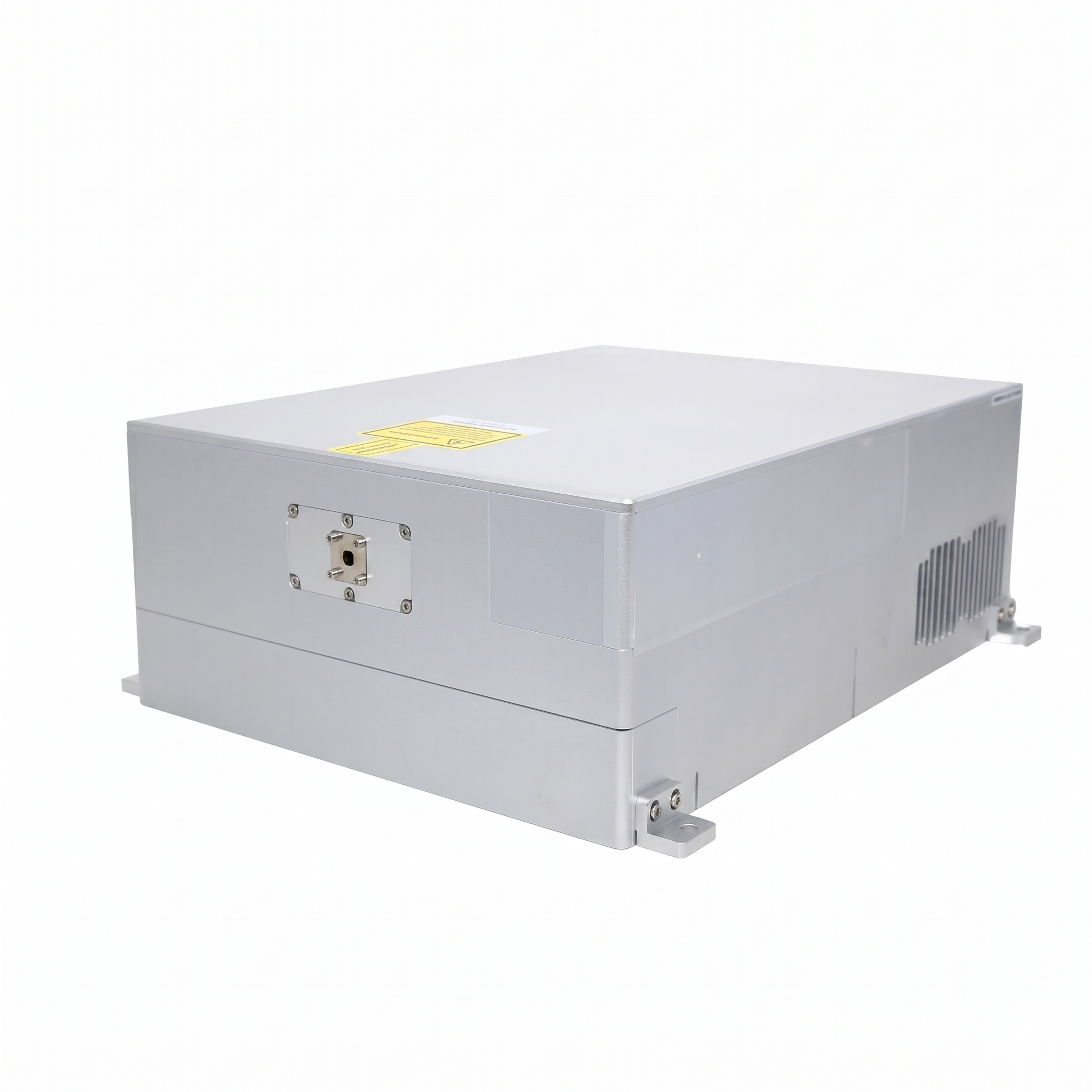

LPS-532-Subnano
532nm, 532 nm, 532±1 nm, Lamp Pump Solid State Laser, Nanosecond Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~7 |
|---|---|
| Beam Divergence (mrad) | <3 |
| Central WL | |
| Cooling Method | Water Cooled |
| Energy Stability (rms, over 4 hours) | <3% |
| Expected Lifetime (pulses) | 107~108 |
| Laser OEM | CNI laser |
| Laser Tags | Lamp Pump Solid State Laser, Nanosecond Laser |
| Operating Mode | Pulsed |
| Operating Temperature (℃) | 15~30 |
| Power Supply | AC 220V |
| Pulse Width | <500 ps |
| Repetition Rate | 1~10 Hz (adjustable) |
| Single Pulse Energy | 15-100 mJ |
| Warm-up Time (minutes) | <15 |
| Warranty Period | 1 year |
| Wavelength | 532±1 nm |
