Description
491nm, 491 nm, 491±1 nm, Blue Laser, CW Solid State Laser, Solid State Laser

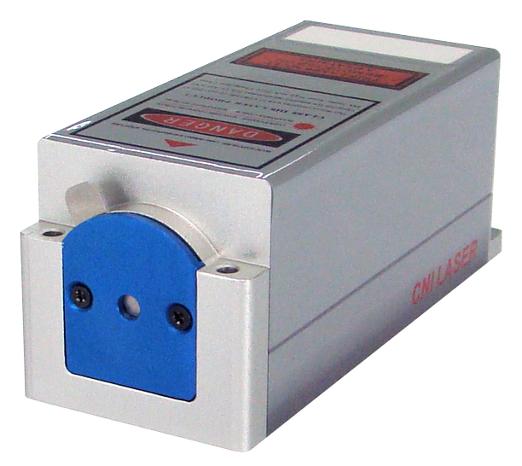

MBL-SF-491
491nm, 491 nm, 491±1 nm, Blue Laser, CW Solid State Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~4 |
|---|---|
| Beam Divergence (mrad) | <3 |
| Beam Height From Base Plate (mm) | 100 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | Blue Laser, CW Solid State Laser, Solid State Laser |
| Operating Mode | CW |
| Operating Temperature (℃) | 15~30 |
| Output Power | >2, 50, 100, …,400 mW |
| Polarization | >100:1 |
| Power Stability (RMS) | <3%, <5%, <10% |
| Power Supply | PSU-W-FDA (90-264VAC) |
| Transverse Mode | Near TEM00 |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 491±1 nm |
