Description
457nm, 457 nm, 457±1 nm, Blue Laser, CW Solid State Laser, Solid State Laser

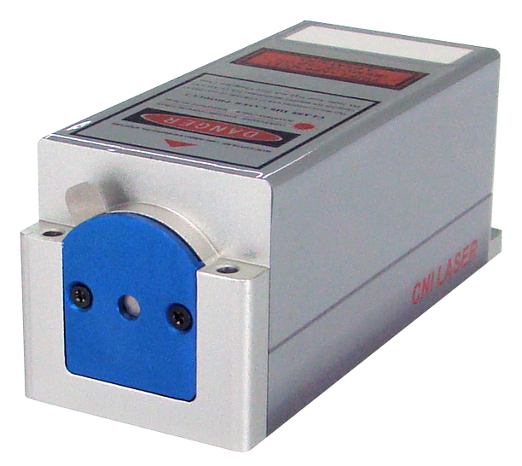

MBL-W-457-Water
457nm, 457 nm, 457±1 nm, Blue Laser, CW Solid State Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~2.0 |
|---|---|
| Beam Divergence (mrad) | <1.5 |
| Beam Height From Base Plate (mm) | 85 |
| Central WL | |
| Cooling Method | Water Cooled |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | Blue Laser, CW Solid State Laser, Solid State Laser |
| M² | <1.5 |
| Operating Mode | CW |
| Operating Temperature (℃) | 10~35 |
| Output Power | >1, 2, …, 3 W |
| Polarization | >50:1(>100:1 optional) |
| Power Stability (RMS) | <3%, <2%, <1% |
| Power Supply | PSU-W-LED/ PSU-W-FDA (90-264VAC) |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional |
| Transverse Mode | TEM00 |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 457±1 nm |
