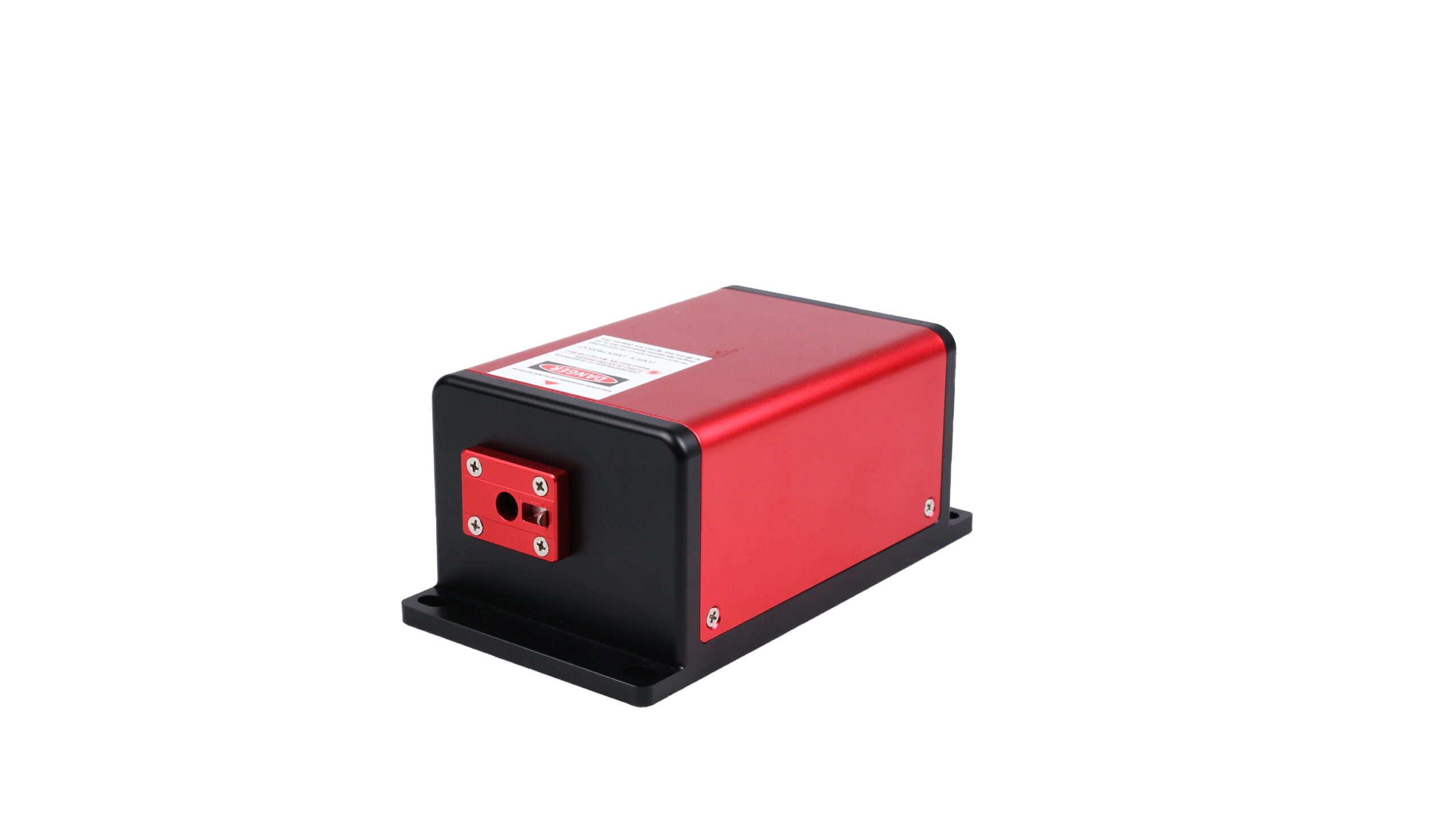

MDL-C-415 — 415 nm Violet Diode Laser for Coherent Optics. 415 nm nominal wavelength; MDL-C diode laser series.. Applications: Violet-laser excitation and Optical interference.
| Wavelength | 415±1 nm |
|---|---|
| Beam Divergence (mrad) | <1.5 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Power Stability (RMS) | <1%, <2%, <3% |
| Output Power | >1, 10, 20,…,50 mW |
| Transverse Mode | Neartem00 |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <5 minutes |
| Expected Life Time (hours) | 10000 hours |
| Operating Mode | CW |
| Beam Diameter At The Aperture (mm,1/e²) | ~1.3 mm (1/e²) |
| Power Supply (110/220VAC) | PSU-A-D |
| Operating Temperature (℃) | 20~30 °C |
MDL-C-415 — 415 nm Violet Diode Laser for Coherent Optics. A violet 415 nm optical source for interference studies and blue-violet wavelength excitation.
Key Specifications: 415 nm nominal wavelength; MDL-C diode laser series.
Potential Applications:
