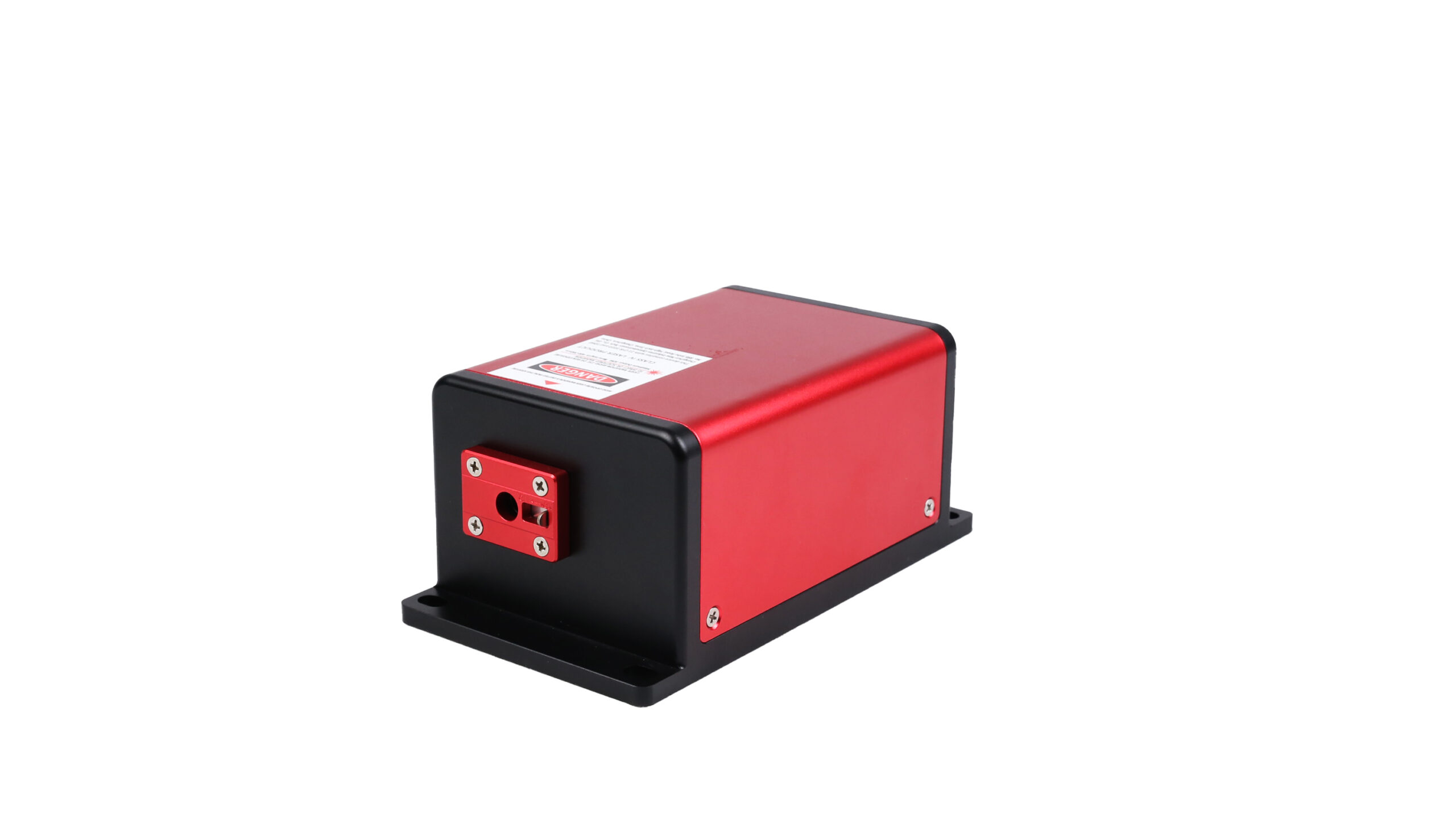

MDL-C-442 — 442 nm Blue Diode Laser for Coherent Optics. 442 nm; MDL-C diode family. Applications: Blue laser spectroscopy and Interference measurements.
| Wavelength | 442±1 nm |
|---|---|
| Beam Divergence (mrad) | <5.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Power Stability (RMS) | <3%, <2%, <1% |
| Output Power | 1-50 mW |
| Transverse Mode | Multimode |
| Warm-up Time (minutes) | <5 minutes |
| Expected Life Time (hours) | >10000 hours |
| Operating Mode | CW |
| Beam Diameter At The Aperture (mm,1/e²) | ~3.5×1.0 mm (1/e²) |
| Power Supply (110/220VAC) | PSU-A-D |
| Operating Temperature (℃) | 20-30 °C |
MDL-C-442 — 442 nm Blue Diode Laser for Coherent Optics. A 442 nm blue laser suited to coherent-optics research.
Key Specifications: 442 nm; MDL-C diode family.
Potential Applications:
