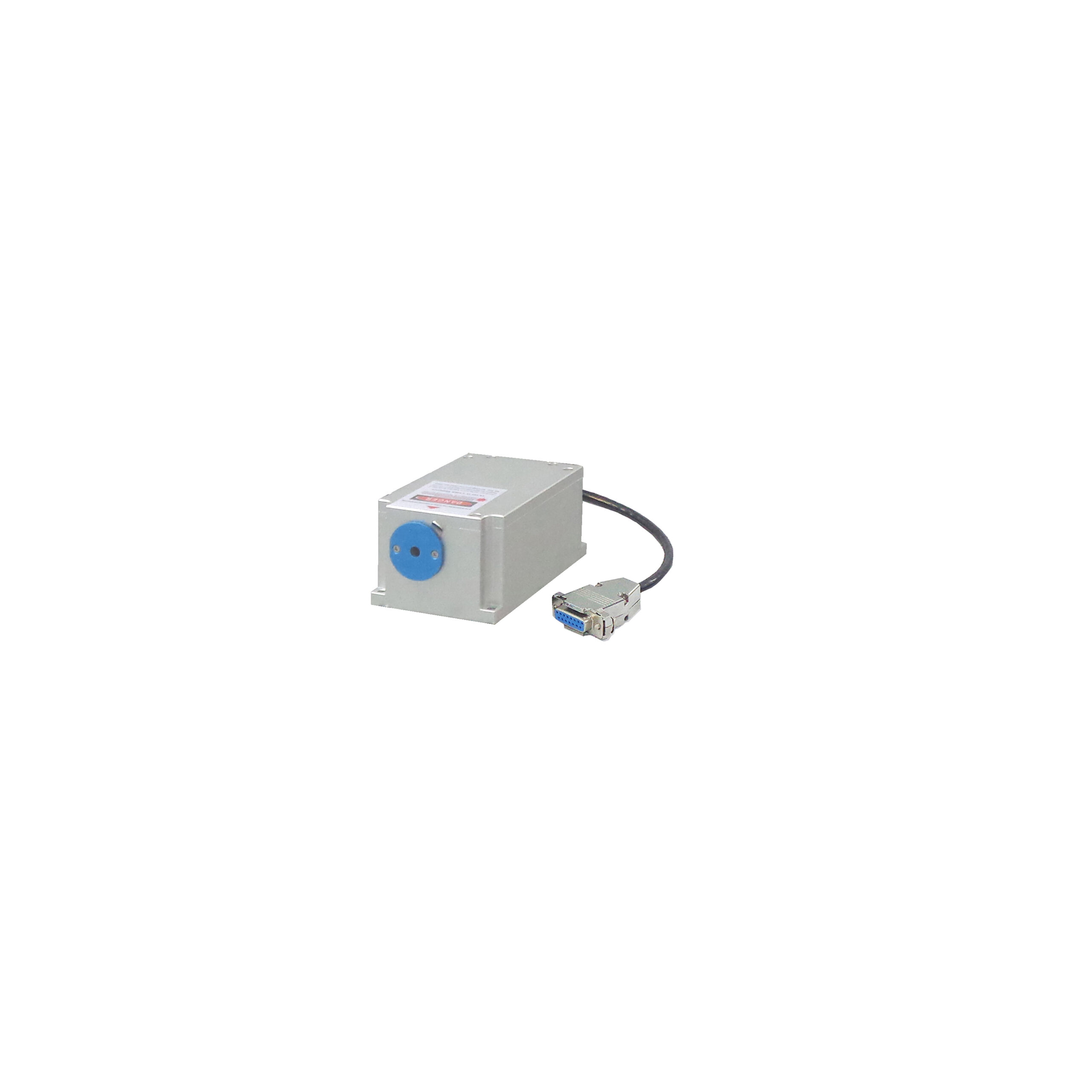

MDL-C-447 — 447 nm Blue Diode Laser. 447 nm; selectable output above 1 mW to 30 mW; RMS power stability <1%, <2% or <3%.. Applications: Blue laser spectroscopy and Interference optics research.
| Wavelength | 447±5 nm |
|---|---|
| Beam Divergence (mrad) | <1.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Power Stability (RMS) | <1%, <2%, <3% |
| Output Power | >1, 2, 3, …,30 mW |
| Transverse Mode | Neartem00 |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <5 minutes |
| Expected Life Time (hours) | 10000 hours |
| Operating Mode | CW |
| Beam Diameter At The Aperture (mm,1/e²) | ~3.5 mm (1/e²) |
| Power Supply (110/220VAC) | PSU-A-D |
| Operating Temperature (℃) | 20~30 °C |
MDL-C-447 — 447 nm Blue Diode Laser. MDL-C-447 produces low-power 447 nm blue emission for precision illumination and coherent-light research.
Key Specifications: 447 nm; selectable output above 1 mW to 30 mW; RMS power stability <1%, <2% or <3%.
Potential Applications:
