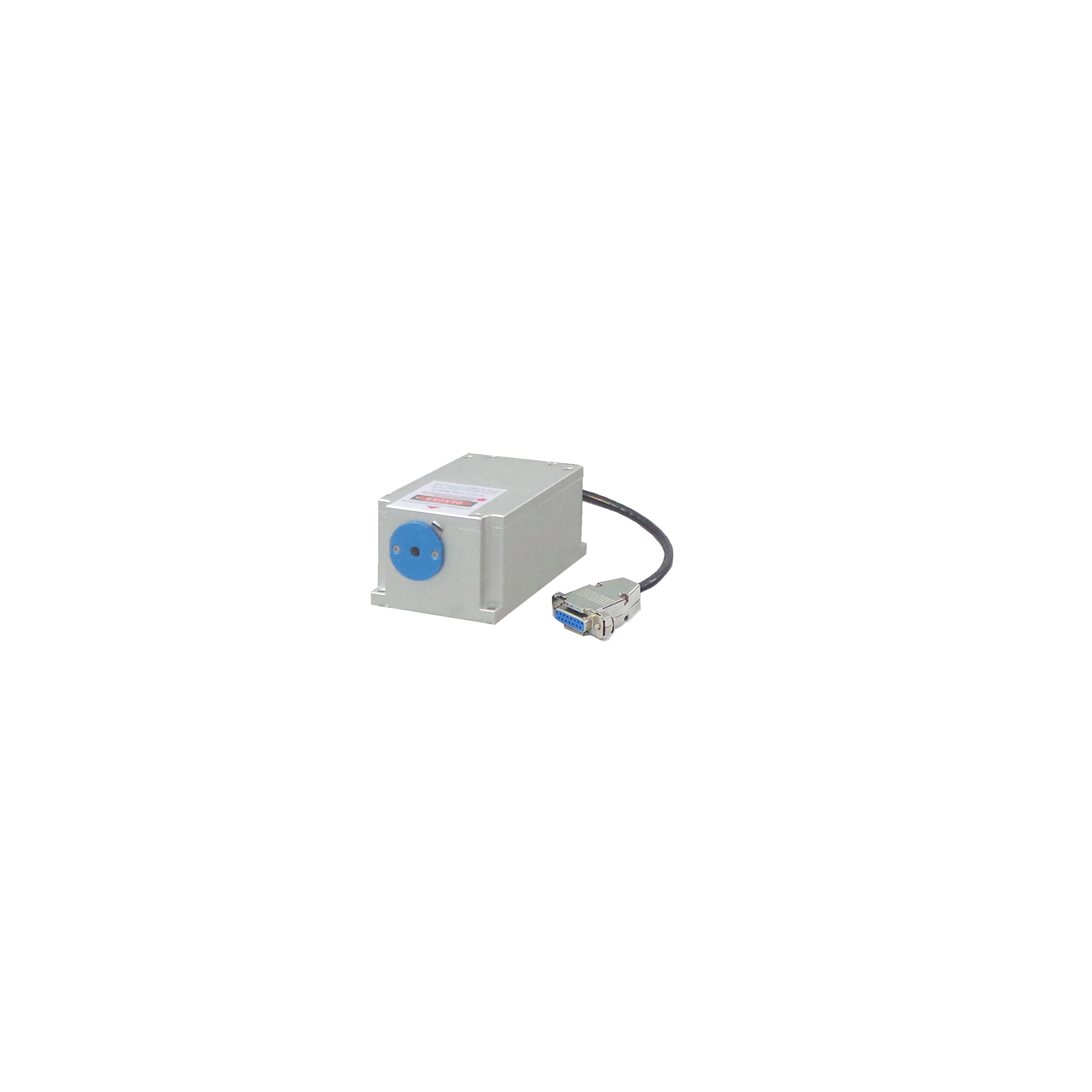

MDL-C-515 — 515 nm Green Diode Laser for Optical Research. 515 nm wavelength; output above 1 mW to 10 mW; RMS stability <1%, <3% or <5%.. Applications: Green-light interference experiments and Raman spectroscopy research.
| Wavelength | 515±5 nm |
|---|---|
| Beam Divergence (mrad) | <1.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Power Stability (RMS) | <1%, <3%, <5% |
| Output Power | >1, 2, 3, ...,10 mW |
| Transverse Mode | Neartem00 |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <15 minutes |
| Expected Life Time (hours) | 10000 hours |
| Operating Mode | CW |
| Beam Diameter At The Aperture (mm,1/e²) | ~3.0 mm (1/e²) |
| Operating Temperature (℃) | 20~30 °C |
MDL-C-515 — 515 nm Green Diode Laser for Optical Research. MDL-C-515 delivers low-power 515 nm green emission for coherent optical experiments and analytical illumination.
Key Specifications: 515 nm wavelength; output above 1 mW to 10 mW; RMS stability <1%, <3% or <5%.
Potential Applications:
