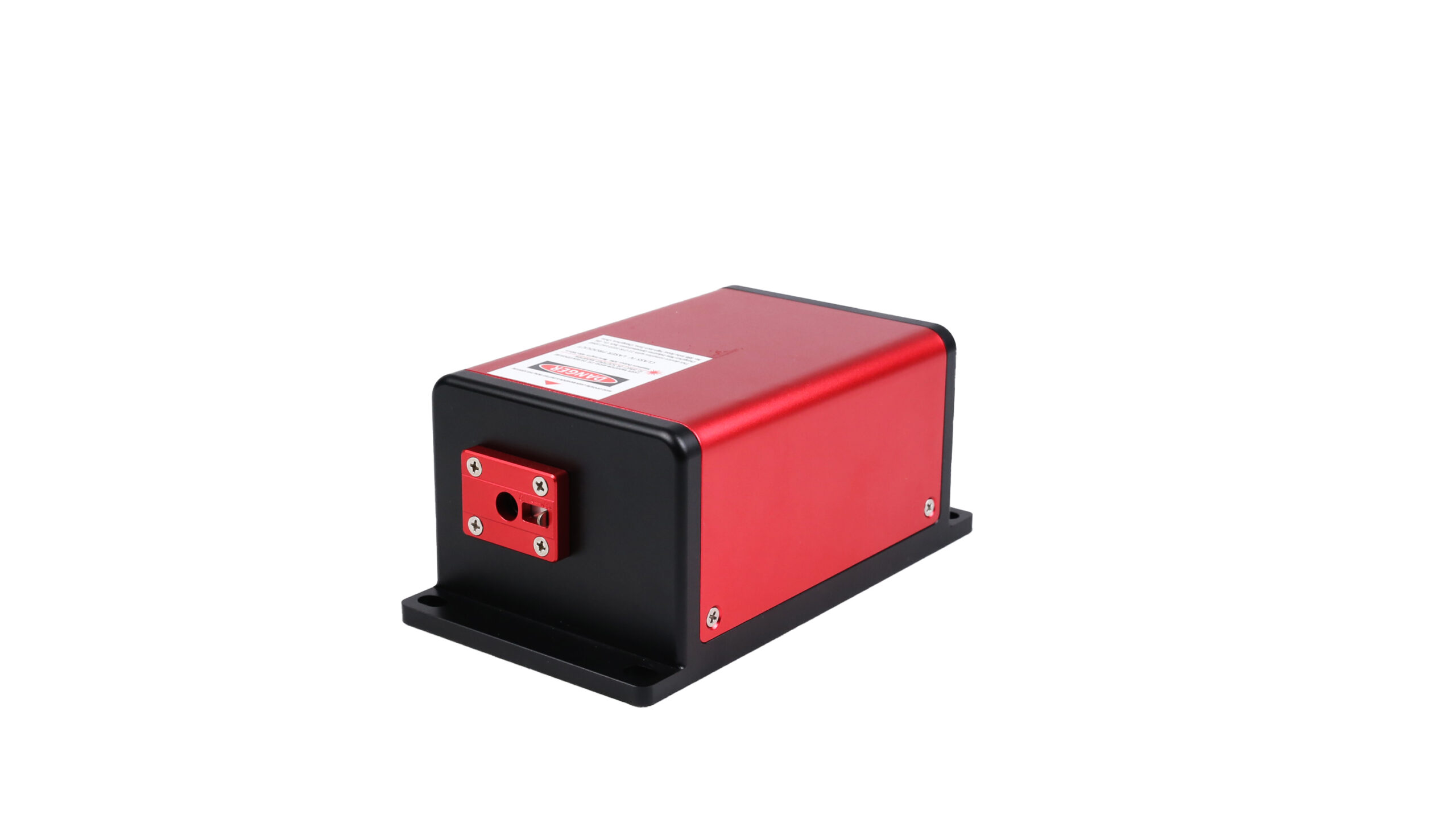

MDL-C-637 — 637 nm Red Diode Laser for Coherent Optics. 637 nm; MDL-C laser family. Applications: Laser interferometry and Holography.
| Wavelength | 637±5 nm |
|---|---|
| Beam Divergence (mrad) | <1.5 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Power Stability (RMS) | <3%, <2%, <1% |
| Output Power | 1-50 mW |
| Transverse Mode | Neartem00 |
| Polarization | >50:1, (>100:1 optional) Horizontal±5 degree (Vertical optional) |
| Warm-up Time (minutes) | <5 minutes |
| Expected Life Time (hours) | >10000 hours |
| Operating Mode | CW |
| Beam Diameter At The Aperture (mm,1/e²) | ~2.0 mm (1/e²) |
| Power Supply (110/220VAC) | PSU-A-D |
| Operating Temperature (℃) | 20-30 °C |
MDL-C-637 — 637 nm Red Diode Laser for Coherent Optics. Red source for interference-sensitive measurements and spectroscopic research.
Key Specifications: 637 nm; MDL-C laser family.
Potential Applications:
