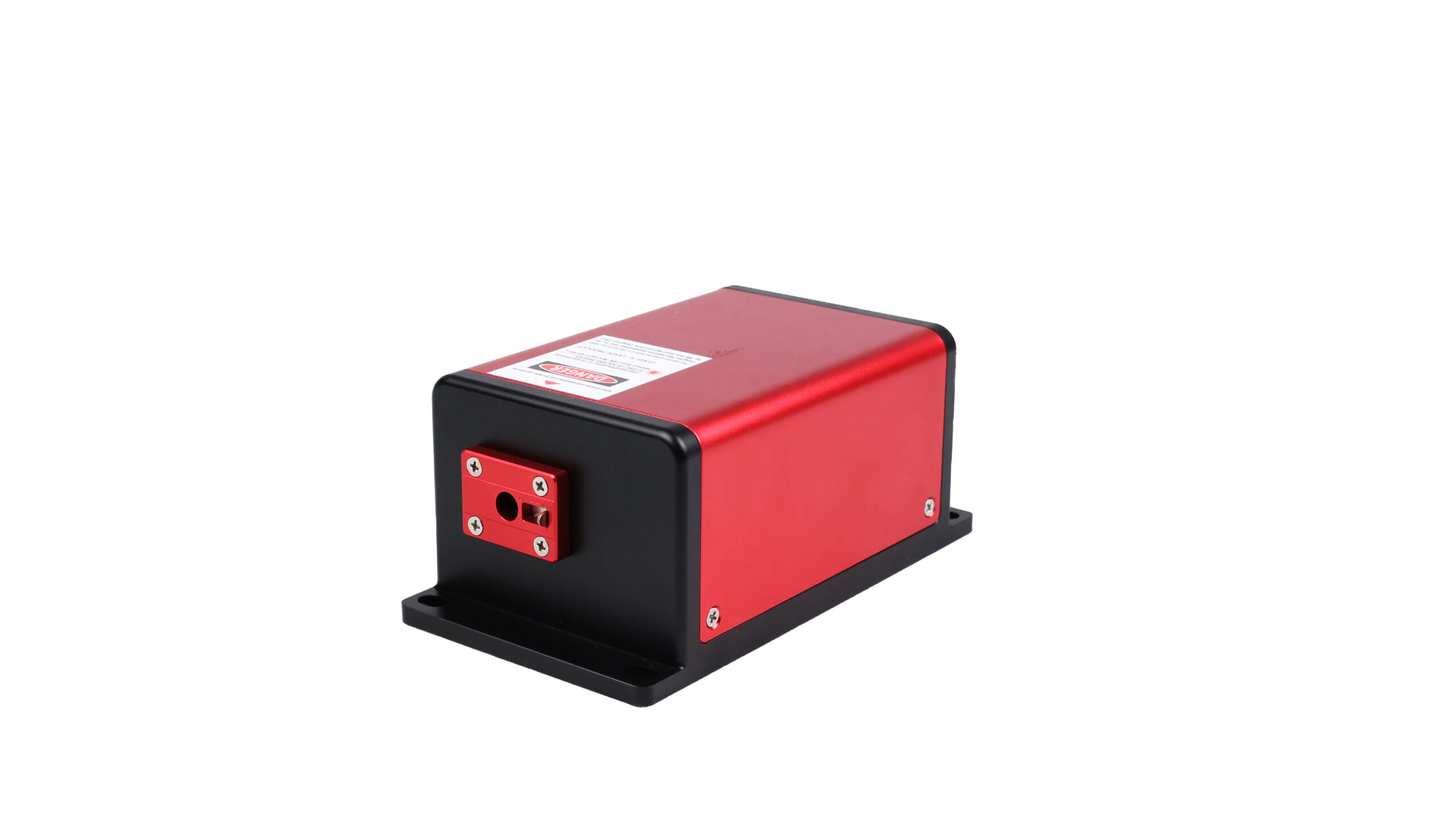

MDL-C-852 — 852 nm Diode Laser for Coherent Optics. 852 nm; MDL-C diode family. Applications: Atomic spectroscopy research and Infrared interference experiments.
| Wavelength | 852±0.5 nm |
|---|---|
| Beam Divergence (mrad) | <2.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Power Stability (RMS) | <3%, <2%, <1% |
| Output Power | >1, 10, 20, …,80 mW |
| Transverse Mode | Neartem00 |
| Polarization | >10:1 (>50:1, optional) Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <5 minutes |
| Expected Life Time (hours) | 10000 hours |
| Operating Mode | CW |
| Beam Diameter At The Aperture (mm,1/e²) | ~1.5 mm (1/e²) |
| Power Supply (110/220VAC) | PSU-A-D |
| Operating Temperature (℃) | 20~30 °C |
MDL-C-852 — 852 nm Diode Laser for Coherent Optics. Near-infrared laser emission for optical interference research.
Key Specifications: 852 nm; MDL-C diode family.
Potential Applications:
