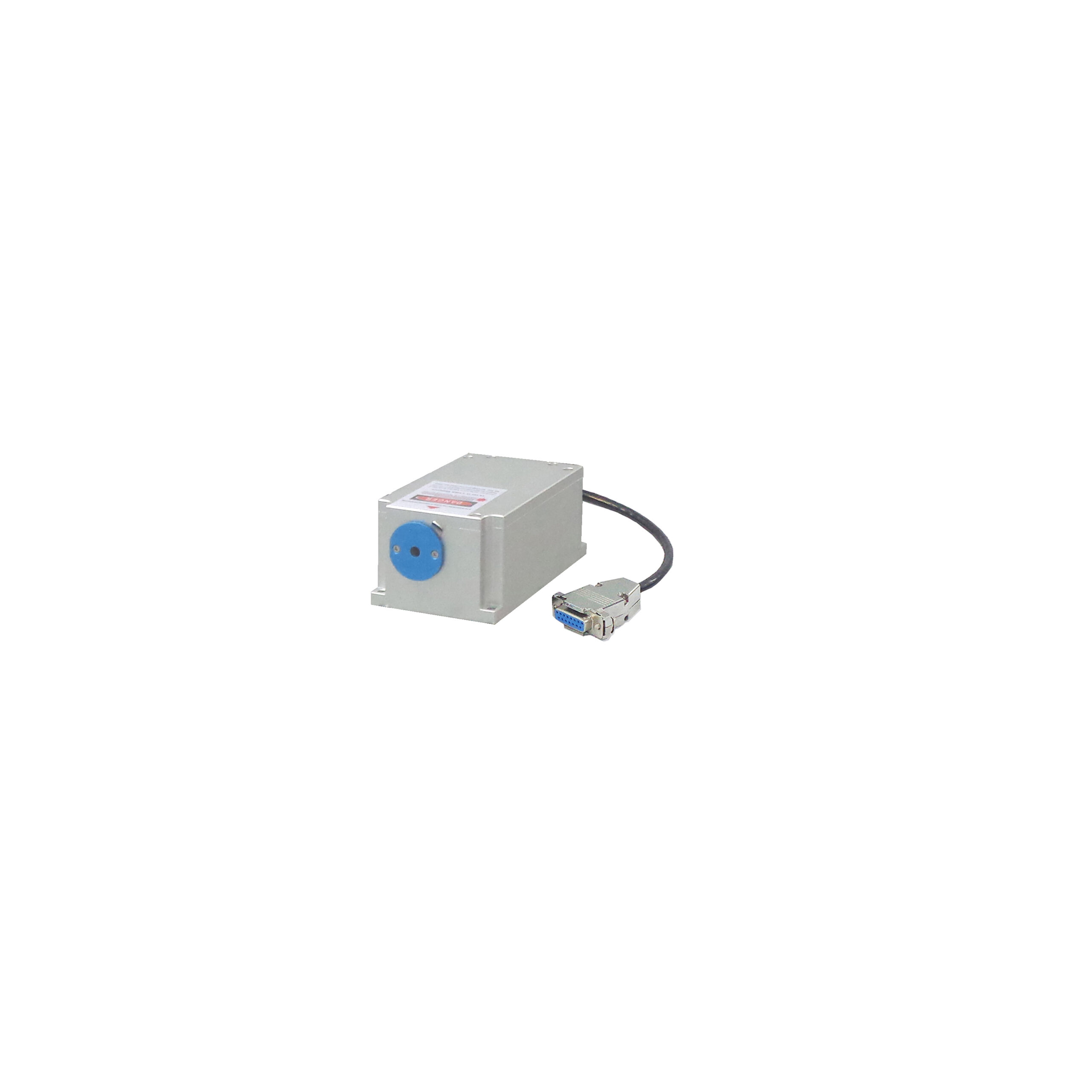

MDL-E-415 — 415 nm Narrow-Linewidth CW Violet Diode Laser. 415 ± 1 nm; CW operation; output options above 1 mW to 50 mW. Applications: Violet laser spectroscopy and Optical sensor characterization.
| Wavelength | 415±1 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | ~1.3 mm (1/e²) |
| Output Power | >1, 5, 10,…,50 mW |
| Spectral Linewidth | <0.06 (<0.03, optional) nm |
| Beam Divergence (mrad) | <1.5 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Transverse Mode | Neartem00 |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 °C |
| Expected Life Time (hours) | 10000 hours |
| Power Stability (RMS) | <1%, <2%, <3% |
| Warm-up Time (minutes) | <5 minutes |
| Power Supply (110/220VAC) | PSU-A-D |
MDL-E-415 — 415 nm Narrow-Linewidth CW Violet Diode Laser. MDL-E-415 combines 415 nm violet emission with narrow spectral linewidth for wavelength-selective optical measurements.
Key Specifications: 415 ± 1 nm; CW operation; output options above 1 mW to 50 mW; linewidth <0.06 nm (<0.03 nm optional); near-TEM00 output.
Potential Applications:
