Description
442nm, 442 nm, 442±0.5 nm, Diode Laser, Narrow Linewidth Laser

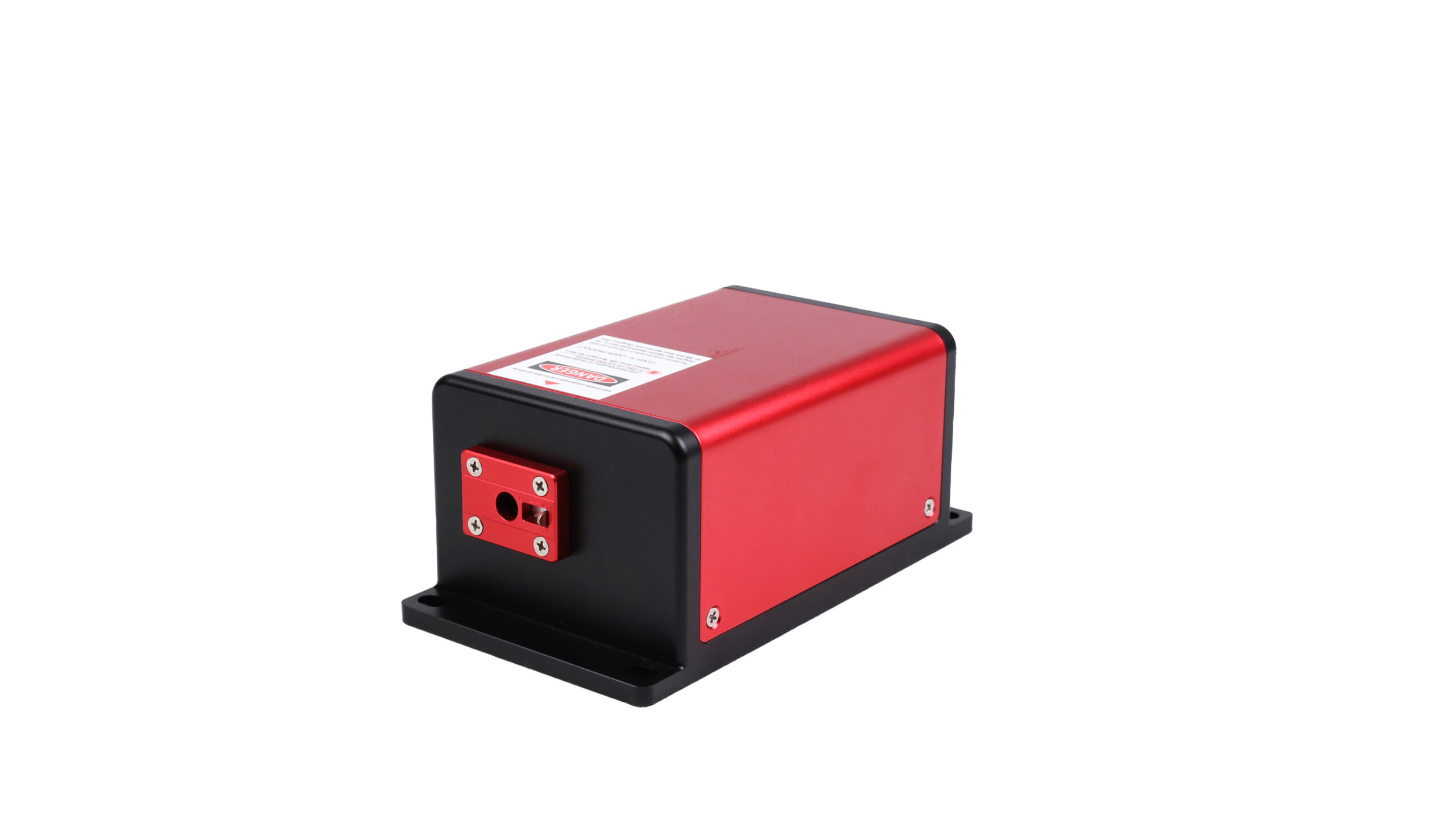

MDL-E-442
442nm, 442 nm, 442±0.5 nm, Diode Laser, Narrow Linewidth Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~2.5×1.0 |
|---|---|
| Beam Divergence (mrad) | ~0.5×4.0 |
| Beam Height From Base Plate (mm) | 30 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| FWHM Linewidth | <0.06 nm (<0.03 nm, optional) |
| Laser OEM | CNI laser |
| Laser Tags | Diode Laser, Narrow Linewidth Laser |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 |
| Output Power | >1, 2, 3, …,30 mW |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Power Stability (RMS) | <1%, <2%, <3% |
| Power Supply | PSU-A-D 100-240VAC |
| Transverse Mode | Multimode |
| Warm-up Time (minutes) | <5 |
| Warranty | 1 year |
| Wavelength | 442±0.5 nm |
