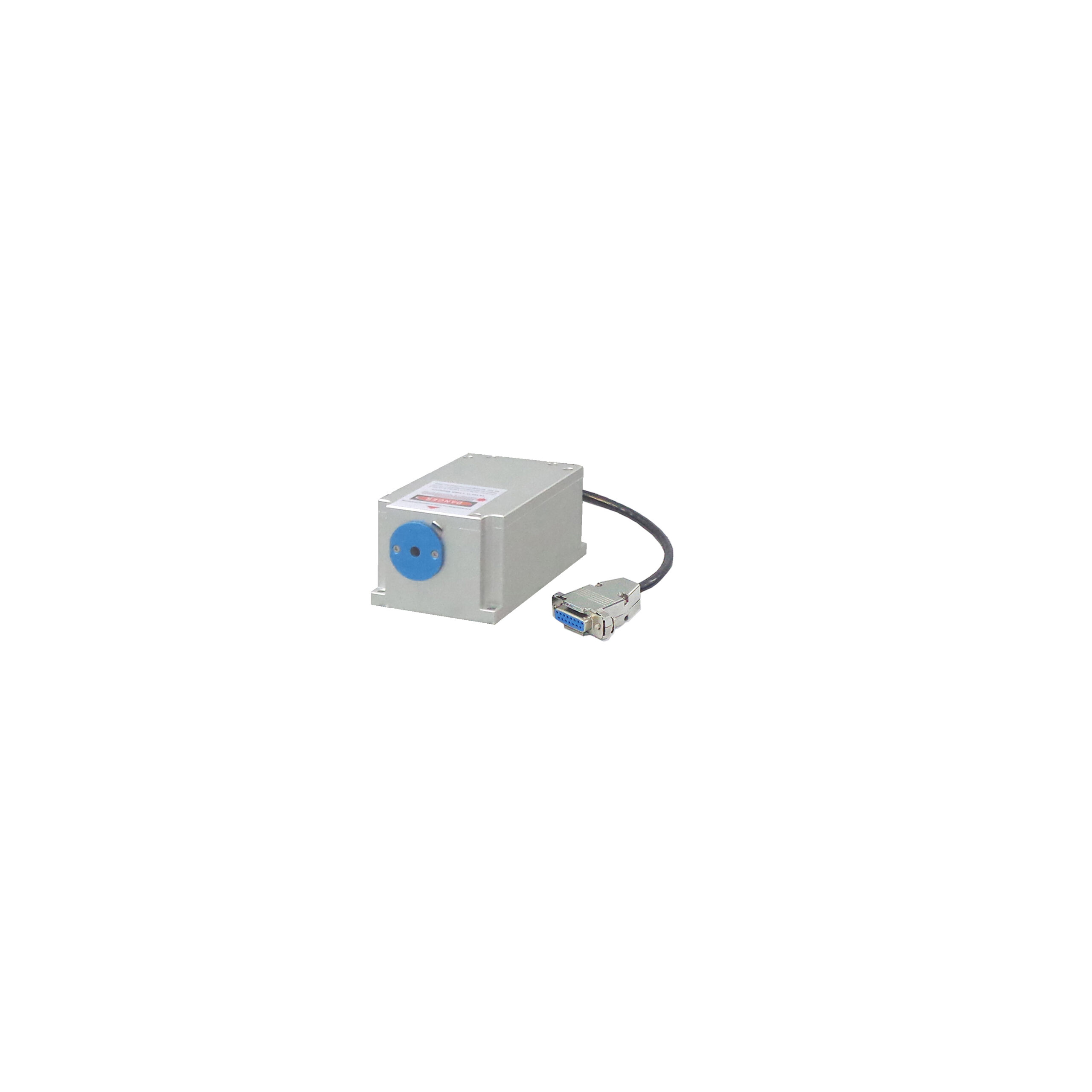

MDL-E-445 — 445 nm Blue Diode Laser for Spectral Analysis. 445 nm wavelength; output above 1 mW to 30 mW; RMS stability <1%, <2% or <3%.. Applications: Blue-wavelength spectroscopy and Precision optical sensing.
| Wavelength | 445±2 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | ~3.5×1.0 mm (1/e²) |
| Output Power | 1-50 mW |
| Spectral Linewidth | <0.06, <0.03 nm |
| Beam Divergence (mrad) | <5.0 mrad |
| Frequency Shift | <20 pm (over ± 2°C and 2hrs) |
| Beam Height From Base Plate (mm) | 30 mm |
| Transverse Mode | Multimode |
| Operating Mode | CW |
| Operating Temperature (℃) | 20-30 °C |
| Expected Life Time (hours) | >10000 hours |
| Power Stability (RMS) | <3%, <2%, <1% |
| Warm-up Time (minutes) | <5 minutes |
| Cooling Method | Conduction |
| Power Supply (110/220VAC) | PSU-A-D |
MDL-E-445 — 445 nm Blue Diode Laser for Spectral Analysis. MDL-E-445 delivers 445 nm low-power blue laser emission for precision optics and spectrum measurements.
Key Specifications: 445 nm wavelength; output above 1 mW to 30 mW; RMS stability <1%, <2% or <3%.
Potential Applications:
