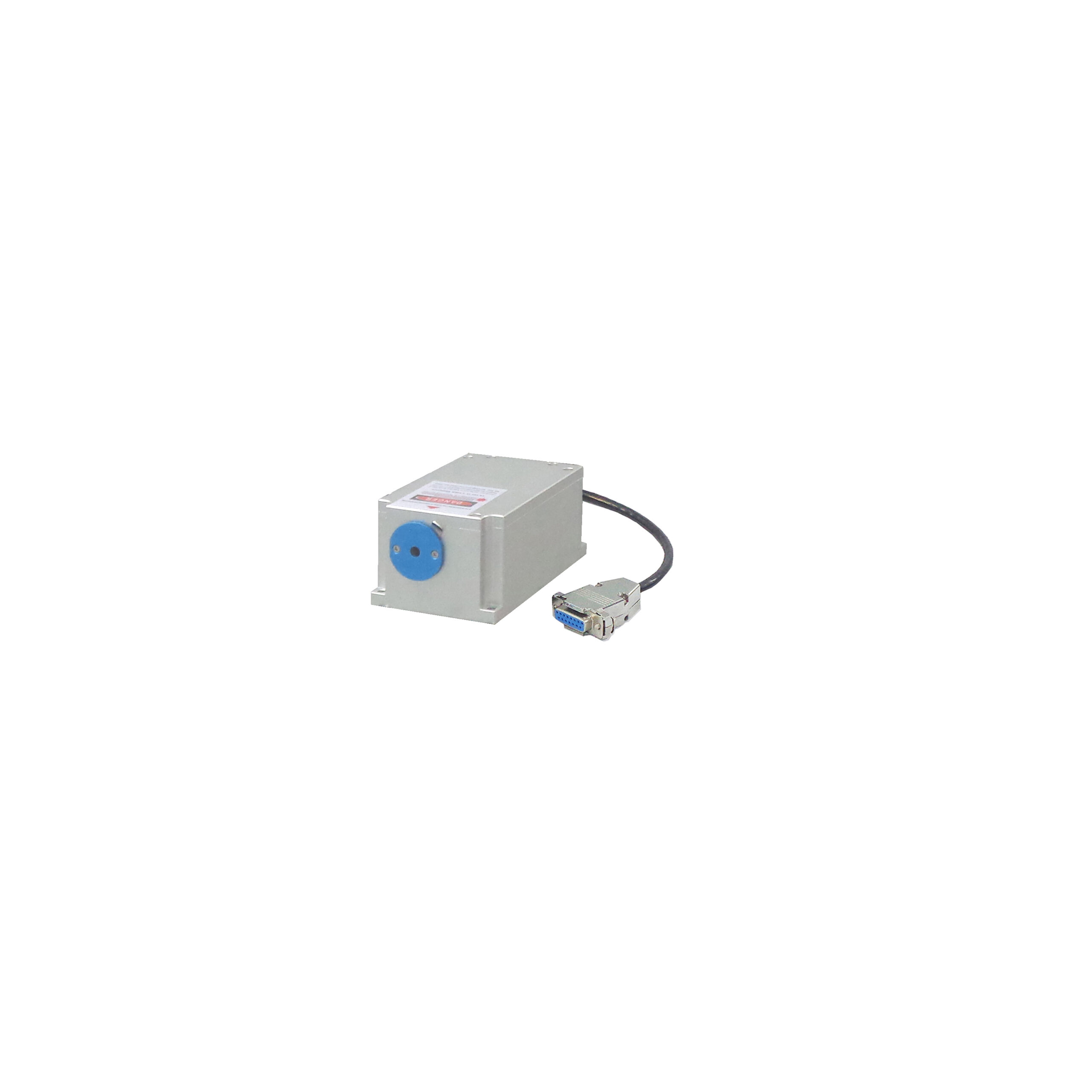

MDL-E-447 — 447 nm Narrow-Linewidth CW Blue Diode Laser. 447 ± 5 nm wavelength; CW operation; >1–30 mW output selections. Applications: Precision optical measurements and Blue laser spectroscopy.
| Wavelength | 447±5 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | ~3.5 mm (1/e²) |
| Output Power | >1, 2, 3, …,30 mW |
| Spectral Linewidth | <0.06 (<0.03, optional) nm |
| Beam Divergence (mrad) | <1.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Transverse Mode | Neartem00 |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 °C |
| Expected Life Time (hours) | 10000 hours |
| Power Stability (RMS) | <1%, <2%, <3% |
| Warm-up Time (minutes) | <5 minutes |
| Power Supply (110/220VAC) | PSU-A-D |
MDL-E-447 — 447 nm Narrow-Linewidth CW Blue Diode Laser. MDL-E-447 provides spectrally controlled blue diode emission for precision optical measurement and wavelength-selective experiments.
Key Specifications: 447 ± 5 nm wavelength; CW operation; >1–30 mW output selections; spectral linewidth <0.06 nm (<0.03 nm optional); near-TEM00 beam.
Potential Applications:
