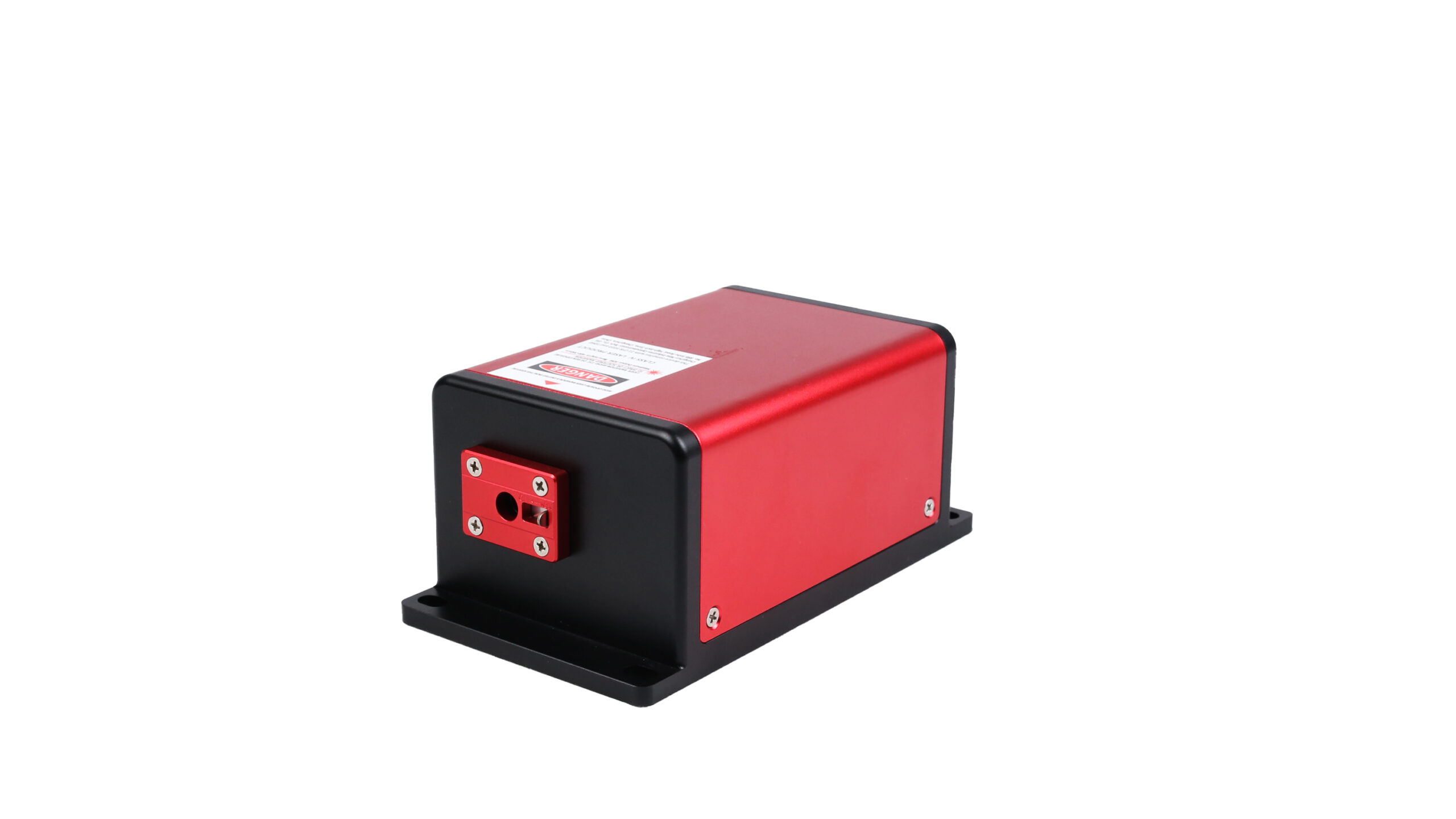

MDL-E-450 — 450 nm diode laser. 450 nm; MDL laser family. Applications: Blue laser spectral analysis and Photonic sensor research.
| Wavelength | 450±5 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | ~3.5 mm (1/e²) |
| Output Power | >1, 2, 3, …,30 mW |
| Spectral Linewidth | <0.06 (<0.03, optional) nm |
| Beam Divergence (mrad) | <1.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Transverse Mode | Neartem00 |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 °C |
| Expected Life Time (hours) | 10000 hours |
| Power Stability (RMS) | <1%, <2%, <3% |
| Warm-up Time (minutes) | <5 minutes |
| Power Supply (110/220VAC) | PSU-A-D |
MDL-E-450 — 450 nm diode laser. MDL-E-450 provides 450 nm laser emission for blue laser spectral analysis and photonic sensor research.
Key Specifications: 450 nm; MDL laser family.
Potential Applications:
