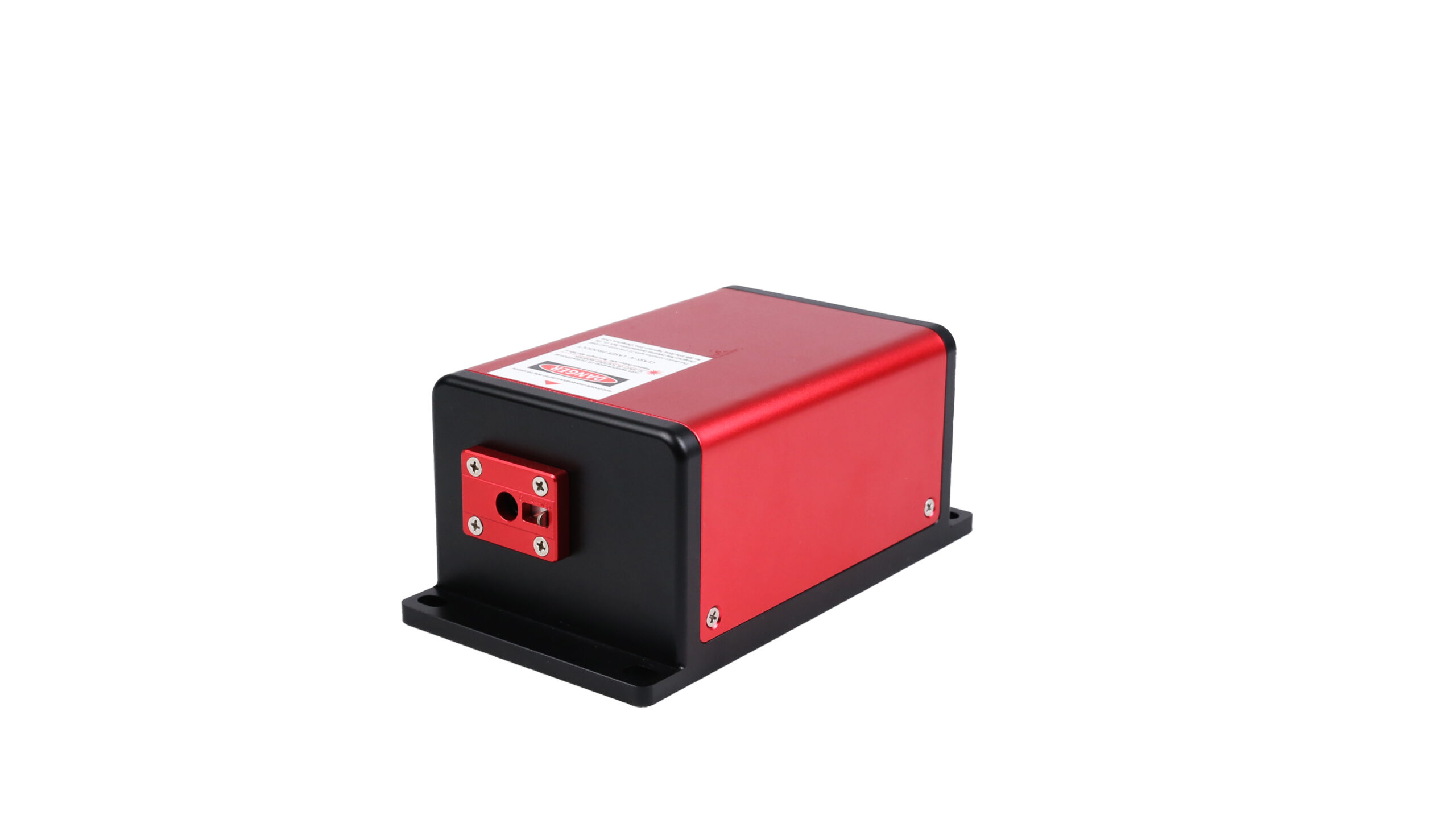

MDL-E-460 — 460 nm diode laser. 460 nm; MDL laser family. Applications: 460 nm blue spectroscopy and Optical sensing.
| Wavelength | 460±5 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | <2×5 mm (1/e²) |
| Output Power | >1, 10, 20, …,100 mW |
| Spectral Linewidth | <0.06 (<0.03, optional) nm |
| Beam Divergence (mrad) | <2.5×0.2 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Transverse Mode | Multimode |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 °C |
| Expected Life Time (hours) | 10000 hours |
| Power Stability (RMS) | <1%, <2%, <3% |
| Warm-up Time (minutes) | <5 minutes |
| Power Supply (110/220VAC) | PSU-A-D |
MDL-E-460 — 460 nm diode laser. MDL-E-460 provides 460 nm laser emission for 460 nm blue spectroscopy and optical sensing.
Key Specifications: 460 nm; MDL laser family.
Potential Applications:
