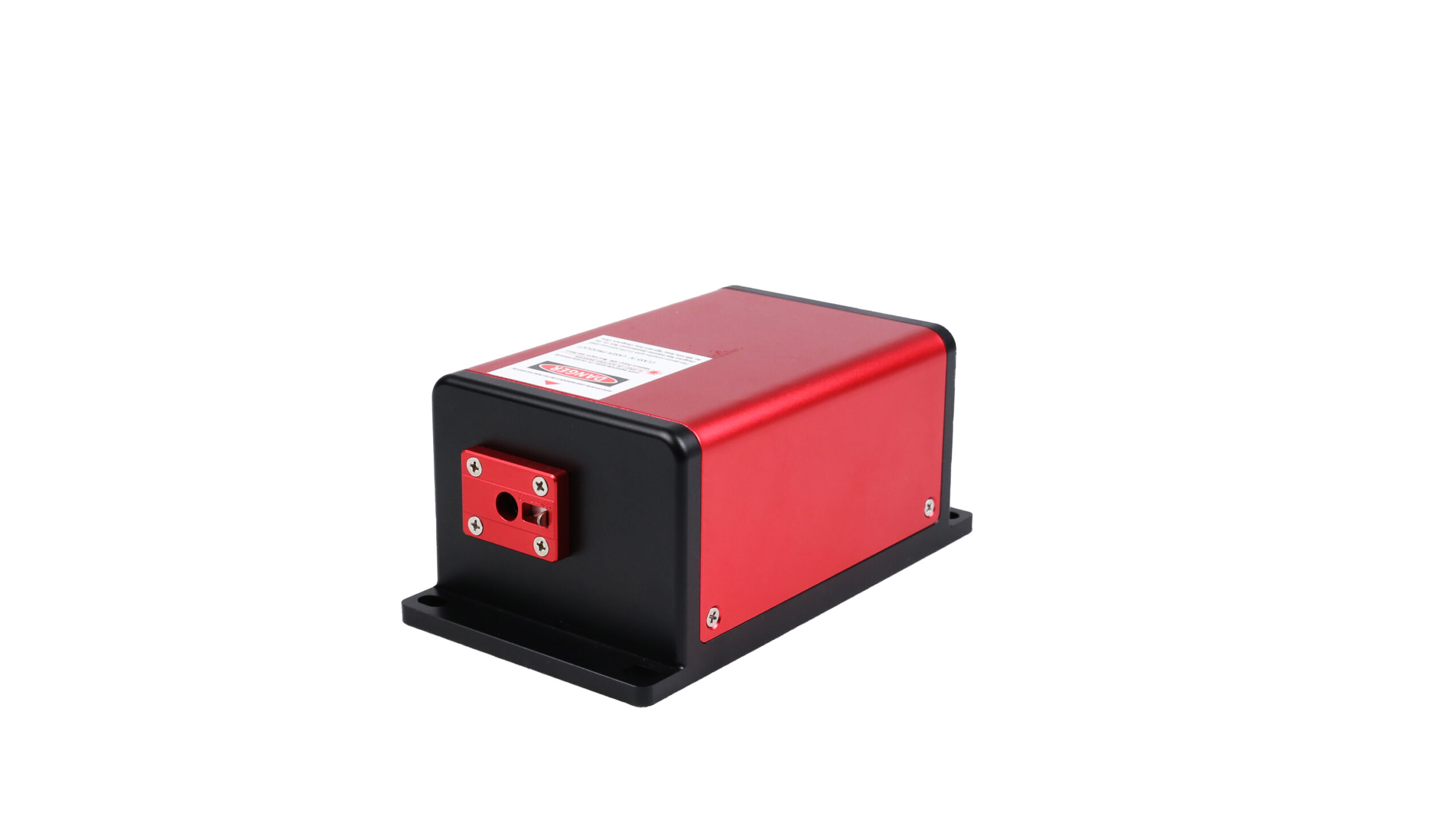

MDL-E-515 — 515 nm diode laser. 515 nm. Applications: 515 nm green spectroscopy and Precision optical sensing.
| Wavelength | 515±5 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | ~3.0 mm (1/e²) |
| Output Power | >1, 2, 3, ...,10 mW |
| Spectral Linewidth | <0.06, <0.03(extra heatsink) nm |
| Beam Divergence (mrad) | <1.0 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| M² | <1.5 |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Transverse Mode | Neartem00 |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 °C |
| Expected Life Time (hours) | 10000 hours |
| Power Stability (RMS) | <1%, <3%, <5% |
| Warm-up Time (minutes) | <15 minutes |
MDL-E-515 — 515 nm diode laser. MDL-E-515 provides 515 nm laser output for 515 nm green spectroscopy, with applications in precision optical sensing.
Key Specifications: 515 nm.
Potential Applications:
