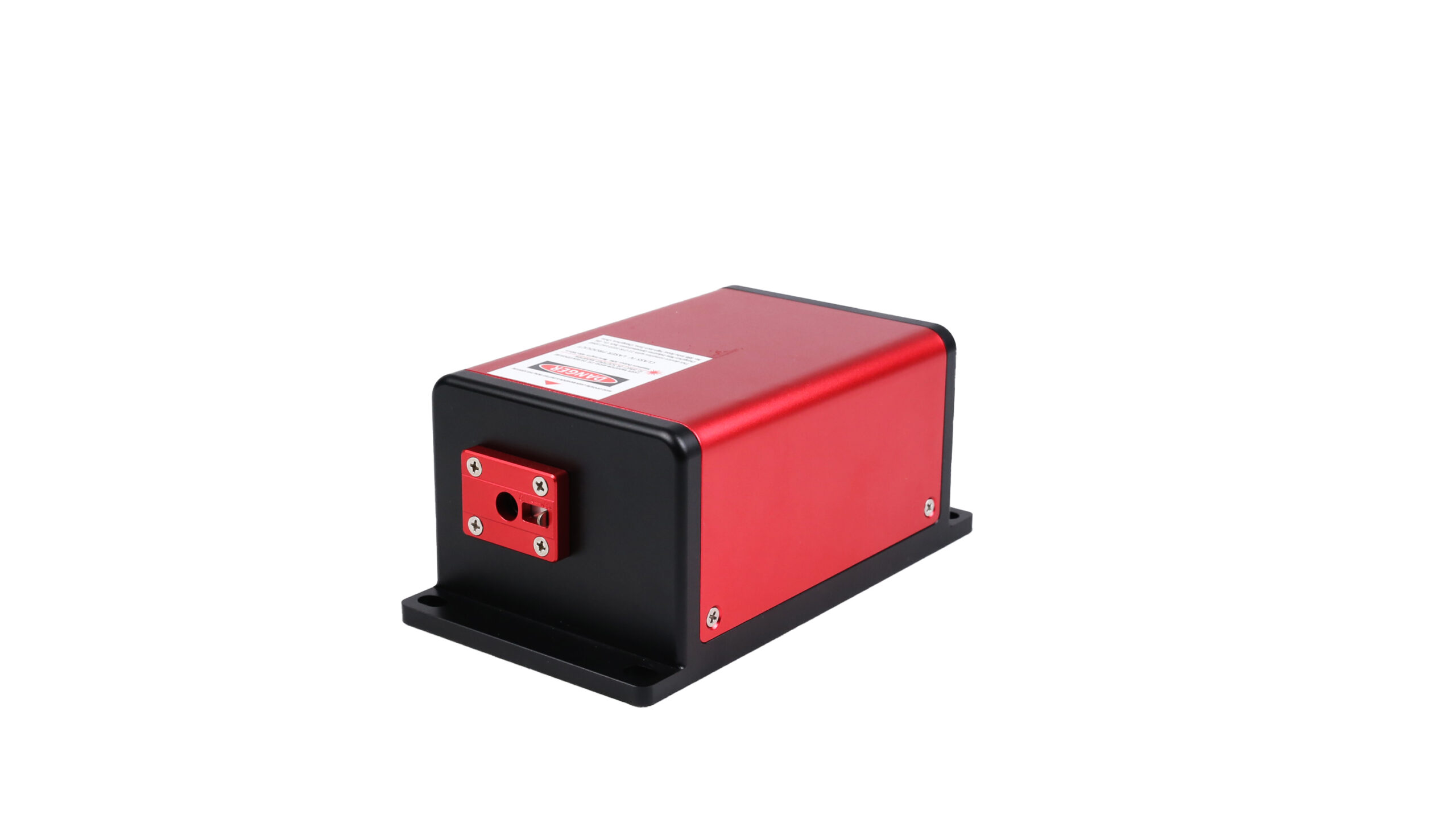

MDL-E-650 — 650 nm Red Diode Laser for Spectral Analysis. 650 nm wavelength; output above 1 mW up to 30 mW; RMS power stability below 3%, 2% or 1%.. Applications: Red-wavelength spectroscopy and Optical measurement systems.
| Wavelength | 650±10 nm |
|---|---|
| Beam Diameter At The Aperture (mm,1/e²) | ~2.0 mm (1/e²) |
| Output Power | >1, 2, 3, …,30 mW |
| Spectral Linewidth | <0.06 (<0.03, optional) nm |
| Beam Divergence (mrad) | ~1.5 mrad |
| Beam Height From Base Plate (mm) | 30 mm |
| M² | <1.5 |
| Polarization | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) |
| Transverse Mode | Neartem00 |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 °C |
| Expected Life Time (hours) | 10000 hours |
| Power Stability (RMS) | <3%, <2%, <1% |
| Warm-up Time (minutes) | <5 minutes |
| Power Supply (110/220VAC) | PSU-A-D |
MDL-E-650 — 650 nm Red Diode Laser for Spectral Analysis. A 650 nm laser providing selectable low-power red emission for scientific instrumentation.
Key Specifications: 650 nm wavelength; output above 1 mW up to 30 mW; RMS power stability below 3%, 2% or 1%.
Potential Applications:
