Description
532nm, 532 nm, 532±1 nm, CW Solid State Laser, Green Laser, Solid State Laser

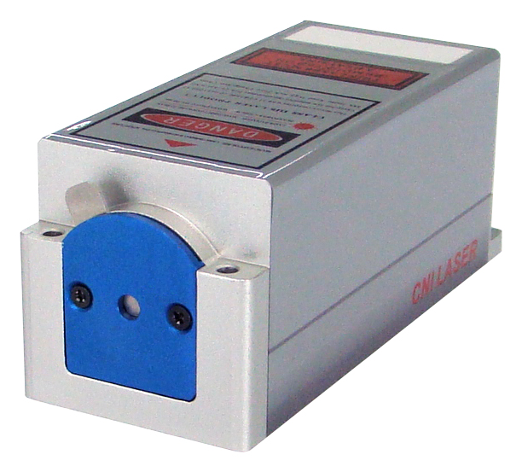

MGL-DS-532
532nm, 532 nm, 532±1 nm, CW Solid State Laser, Green Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | 0.7±0.05 |
|---|---|
| Beam Divergence (mrad) | <1.5 |
| Beam Height From Base Plate (mm) | 19 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Fiber (Optional) | Multimode/ Single Mode |
| Laser OEM | CNI laser |
| Laser Tags | CW Solid State Laser, Green Laser, Solid State Laser |
| Modulation | Modulation isn’t available. |
| M² | <1.2(<1.1 optional) |
| Operating Mode | CW |
| Operating Temperature (℃) | 10-35 |
| Output Power | >1,5,10,20,…,150 mW |
| Pointing Stability (µrad) | <8 |
| Polarization | >100:1 Horizontal±5 degree (Vertical Optional) |
| Power Consumption (W) | <6 |
| Power Stability (RMS) | <1%, <2%, <3% |
| Power Supply | 5V DC (Photoelectric integrated) |
| Shock Tolerance (6ms) | 7g laterally,15g vertically |
| Storage Temperature (℃) | 5-50 |
| Transverse Mode | TEM00 |
| Warm-up Time (minutes) | <5 |
| Warranty | 1 year |
| Wavelength | 532±1 nm |
