Description
593.5nm, 593.5 nm, 593.5±1 nm, CW Solid State Laser, Green Laser, Solid State Laser

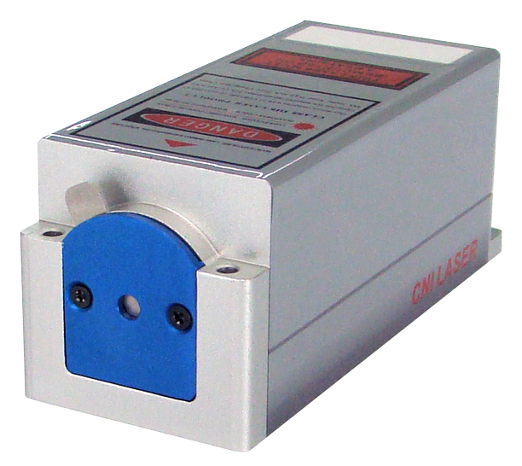

MGL-F-593.5
593.5nm, 593.5 nm, 593.5±1 nm, CW Solid State Laser, Green Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~3. 0 |
|---|---|
| Beam Divergence (mrad) | <2.0 |
| Beam Height From Base Plate (mm) | 45 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | CW Solid State Laser, Green Laser, Solid State Laser |
| Modulation Option | TTL on-off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation optional |
| M² | <1.5 |
| Operating Mode | CW |
| Operating Temperature (℃) | 10~35 |
| Output Power | >50, 60, 80, …, 100 mW |
| Pointing Stability (µrad) | <50 |
| Polarization | >100:1 |
| Power Stability (RMS) | <3%, <5%, <10% |
| Power Supply | PSU-H-LED/PSU-H-FDA/PSU-SR (90-264VAC) |
| Transverse Mode | TEM00 |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 593.5±1 nm |
