MGL-FN-594

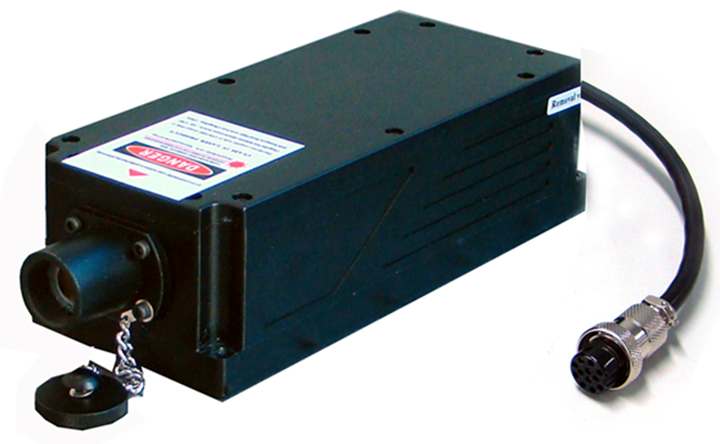

MGL-FN-594 — 594 nm Yellow-Orange Laser. 594 nm wavelength; selectable output above 1 mW up to 100 mW; RMS stability below 2%, 3% or 5%.. Applications: Optical beam collimation and Yellow-orange spectroscopy.

Datasheet

Technical Specifications

Wavelength594±1 nm
M²<1.5
Output Power>1, 10, 20, …,100 mW
Power Stability (RMS)<2%, <3%, <5%
Operating ModeCW
Operating Temperature (℃)10~35 °C
Beam Height From Base Plate (mm)27.4 mm
Transverse ModeTEM00
Warm-up Time (minutes)<10 minutes

Description

MGL-FN-594 — 594 nm Yellow-Orange Laser. A visible yellow-orange laser for optical alignment, experimental illumination and scientific instrumentation.

Key Specifications: 594 nm wavelength; selectable output above 1 mW up to 100 mW; RMS stability below 2%, 3% or 5%.

Potential Applications:

  • Optical beam collimation
  • Yellow-orange spectroscopy
  • Laboratory illumination
  • Optical instrument alignment
