Description
561nm, 561 nm, 561±1 nm, CW Solid State Laser, Green Laser, Solid State Laser

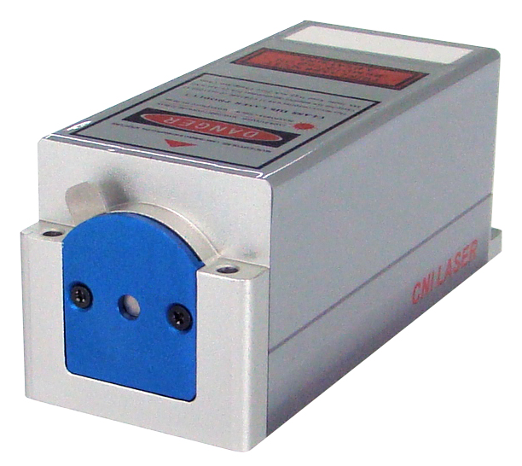

MGL-S-561
561nm, 561 nm, 561±1 nm, CW Solid State Laser, Green Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | 0.7±0.1 |
|---|---|
| Beam Divergence (mrad) | <1.5 |
| Beam Height From Base Plate (mm) | 19 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | CW Solid State Laser, Green Laser, Solid State Laser |
| Modulation | TTL on-off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation optional |
| M² | <2.0 |
| Operating Mode | CW |
| Operating Temperature (℃) | 10-35 |
| Output Power | >1,2,10……30 mW |
| Pointing Stability (µrad) | <50 |
| Polarization | >100:1 Vertical±5 degree (Horizontal Optional) |
| Power Stability (RMS) | <1%, <2%, <3% |
| Power Supply | PSU-A-D/PSU-A-F/PSU-III-OEM-97(5VDC) (90-264V AC) |
| Transverse Mode | TEM00 |
| Warranty | 1 year |
| Wavelength | 561±1 nm |
