Description
594nm, 594 nm, 594±1 nm, CW Solid State Laser, Green Laser, Solid State Laser

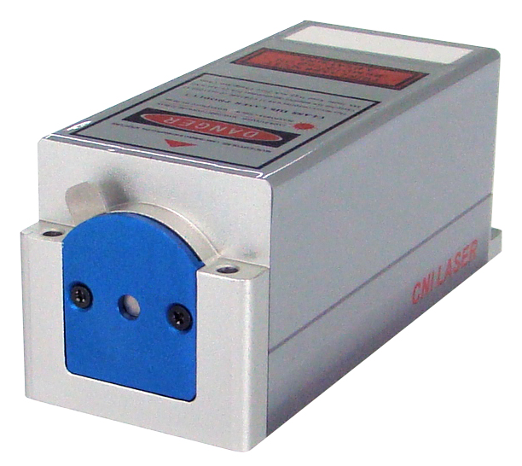

MGL-U-594
594nm, 594 nm, 594±1 nm, CW Solid State Laser, Green Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~0.7±0.05 |
|---|---|
| Beam Divergence (mrad) | <1.5 |
| Beam Height From Base Plate (mm) | 27.4 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Laser Head Consumption (W) | 15 (typical) , <25 (40℃) |
| Laser OEM | CNI laser |
| Laser Tags | CW Solid State Laser, Green Laser, Solid State Laser |
| Max. Laser Head Base Plate Temp (°C) | 50 |
| Modulation Option | TTL on-off, 1Hz-1KHz, 1KHz-10KHz; and Analog modulation optional |
| M² | <1.2 |
| Operating Mode | CW |
| Operating Temperature (°C) | 10-40 |
| Output Power | >1, 5, 10, 20, … , 100 mW |
| Pointing Stability (µrad) | <50 |
| Polarization | >100:1, Horizontal±5 degree (Vertical Optional) |
| Power Stability (RMS) | <3%, <5%,<10% |
| Power Supply | PSU-H-LED/PSU-H-FDA/PSU-SR (90-264VAC) |
| Transverse Mode | TEM00 |
| Warm-up Time (minutes) | <10 |
| Warranty | 1 year |
| Wavelength | 594±1 nm |
