Description
589nm, 589 nm, 589±2 nm, CW Solid State Laser, Green Laser, Solid State Laser

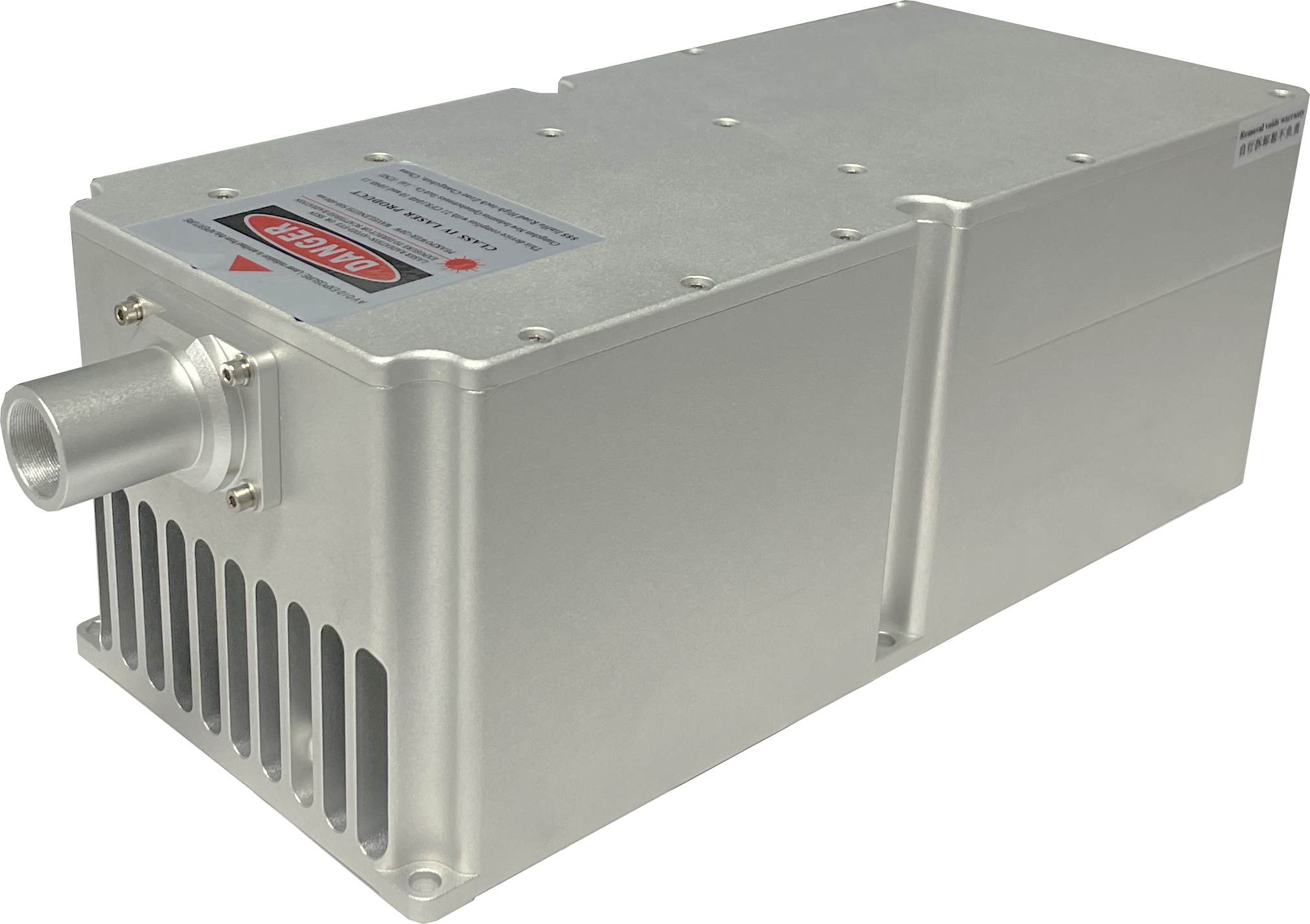

MGL-W-589A
589nm, 589 nm, 589±2 nm, CW Solid State Laser, Green Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~4.0 |
|---|---|
| Beam Divergence (mrad) | <2.0 |
| Beam Height From Base Plate (mm) | 80 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | CW Solid State Laser, Green Laser, Solid State Laser |
| Operating Mode | CW |
| Operating Temperature (℃) | 20~30 |
| Output Power | >800, 850, 900, …, 4500 mW |
| Polarization | >50:1(>100:1 optional) |
| Power Stability (RMS) | <5%, <3%, <1% |
| Power Supply | PSU-W-LED/PSU-W-FDA 100-240VAC |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional |
| Transverse Mode | Near TEM00 |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 589±2 nm |
