Description
532nm, 532 nm, 532±1 nm, CW Solid State Laser, Green Laser, Solid State Laser

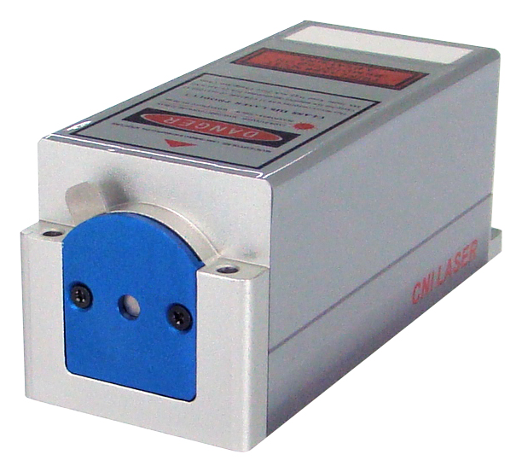

MGL-Z-532
532nm, 532 nm, 532±1 nm, CW Solid State Laser, Green Laser, Solid State Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | ~4.5 |
|---|---|
| Beam Divergence (mrad) | <2.0 |
| Beam Height From Base Plate (mm) | 91 |
| Central WL | |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | CW Solid State Laser, Green Laser, Solid State Laser |
| Operating Mode | CW |
| Operating Temperature (℃) | 10~35 |
| Output Power | >30, 40, …, 60 W |
| Power Stability (RMS) | <5%, <3%, <2%, <1% |
| Power Supply | PSU-SEP-W (90-264VAC) |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional |
| Transverse Mode | Near TEM00 |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 532±1 nm |
