Description
532nm, 532 nm, 532±1 nm, High Energy Laser, Nanosecond Laser

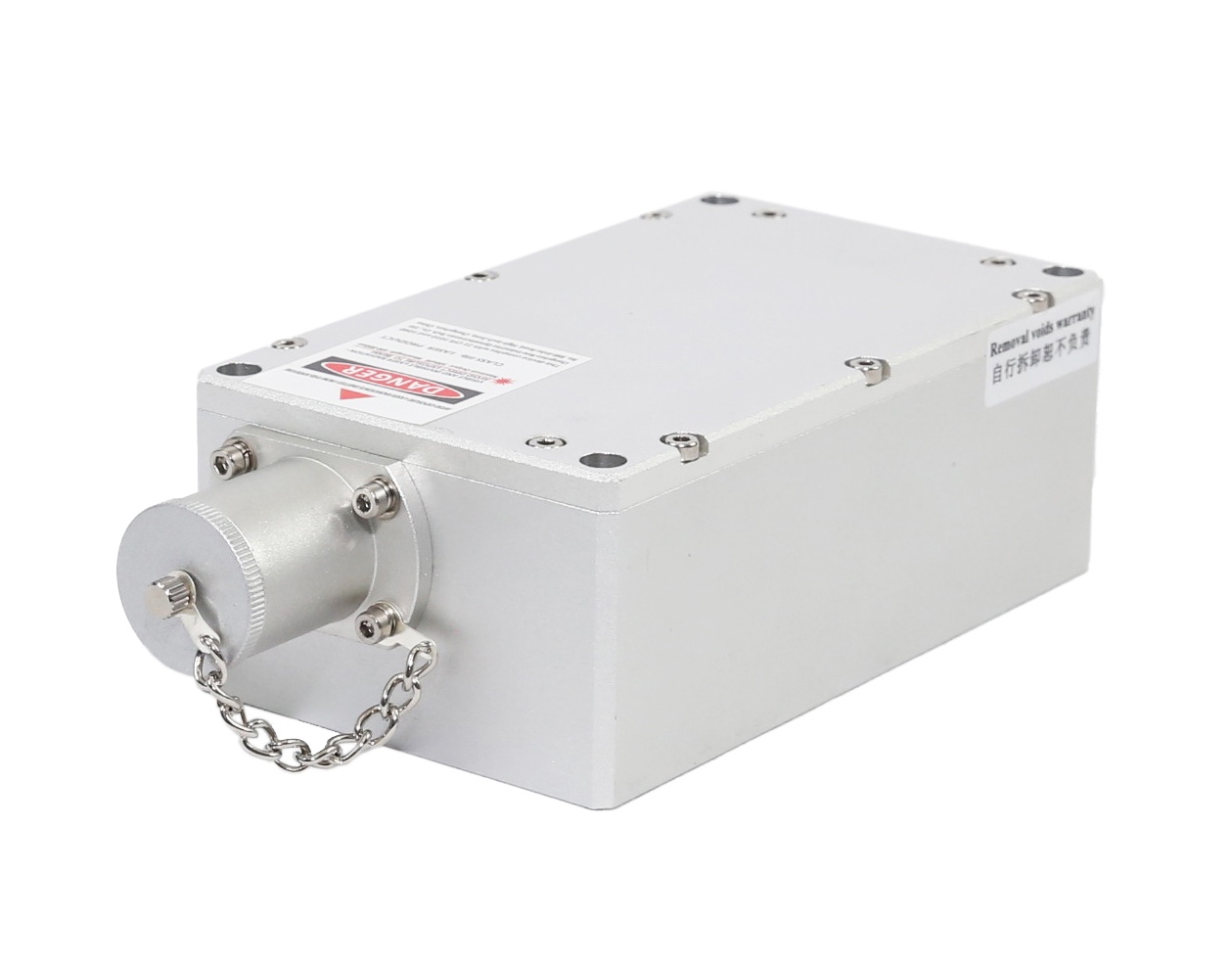

HPL-532-QM(40-100W)
532nm, 532 nm, 532±1 nm, High Energy Laser, Nanosecond Laser
Additional information
| Beam Diameter At The Aperture (mm,1/e²) | <12 |
|---|---|
| Beam Divergence (mrad) | <3.5 |
| Beam Height From Base Plate (mm) | 65 |
| Central WL | |
| Cooling Method | Water Cooled (Choose water chiller according to power) |
| Expected Lifetime (hours) | 10000 |
| Laser OEM | CNI laser |
| Laser Tags | High Energy Laser, Nanosecond Laser |
| Operating Mode | Acousto-Optics Q-switched |
| Operating Temperature (℃) | 15~35 |
| Output Power | 40~100 W |
| Peak Power | 66 @15kHz&100W kW |
| Power Stability | <3%, <5% |
| Power Stability (RMS) | <3%, <5% |
| Power Supply | PSU-HPL-Q & PSU-HPL-CW 220V AC |
| Pulse Width | ~100 ns @15kHz |
| Repetition Rate | 10~20 kHz (ask for other repetition rate) |
| Single Pulse Energy | 6.6 mJ |
| Warm-up Time (minutes) | <10 |
| Warranty Period | 1 year |
| Wavelength | 532±1 nm |
