P12A Piezo Nanopositioning Scanners Travel to 200、400、600μm

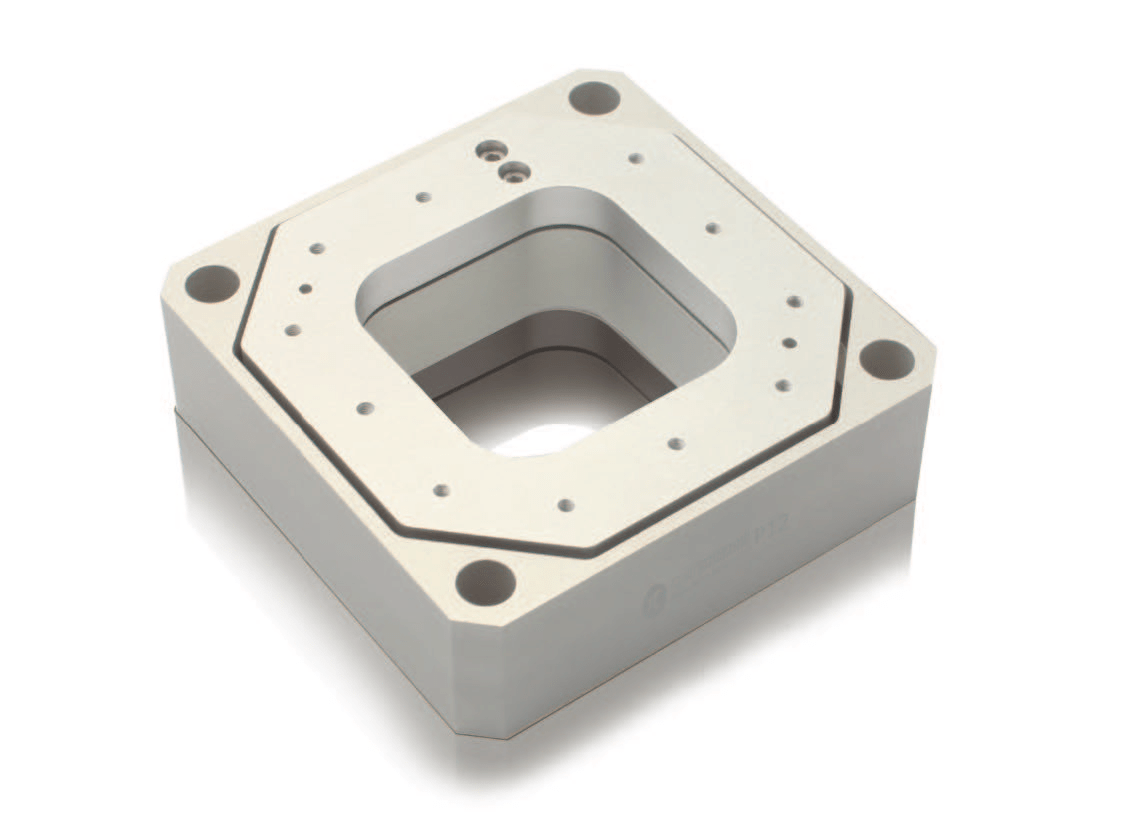

The P12A piezo scan stage is equipped with a high-resolution sensor, which detects the position in real time and feeds it back to the piezo controller. The controller adjusts the voltage to correct the displacement through the PID algorithm to achieve high-precision positioning. P12A piezo scan stage, matched with CoreMorrow E70 modular controller, is applied to optical microscopy imaging to realize XYZ axis precision scanning.

Description

Characteristics

  1 to 3 axes motion version for choice  Travel to 600μm in one single axis  Travel to 200μm/axis for multiple axes version
 Optional closed-loop sensor  Aperture of 45×45mm



Applications

 Scanning microscopy  Confocal microscopy  Surface measurement  Semiconductor test
 Wafer positioning  Image processing and stabilization







    Technical Data

Type

S-Closed loop
K-Open Loop

P12A.X200S
P12A.X200K

P12A.Z200S
P12A.Z200K

P12A.Z400S
P12A.Z400K

P12A.Z600S
P12A.Z600K

P12A.XY200S
P12A.XY200K

P12A.XZ200S
P12A.XZ200K

P12A.XYZ200S
P12A.XYZ200K

Units

Active axes

X

Z

Z

Z

X、Y

X、Z

X、Y、Z

Drive control

1 driving channels 1sensing channels

1 driving channels 1sensing channels

1 driving channels 1sensing channels

1 driving channels 1sensing channels

2 driving channels 2 sensing channels

2 driving channels 2 sensing channels

3 driving channels 3sensing channels

Nominal travel(0~120V)

160

160

320

480

160/axis

160/axis

160/axis

μm±20%

Max.travel(0~150V)

200

200

400

600

200/axis

200/axis

200/axis

μm±20%

Sensor type

SGS/-

SGS/-

SGS/-

SGS/-

SGS/-

SGS/-

SGS/-

Resolution

5.5/2

5.5/2

11/3.5

16/5

5.5/2

5.5/2

5.5/2

nm

Linearity

0.3/-

0.3/-

0.4/-

0.5/-

0.4/-

0.4/-

0.5/-

%F.S.

Repeatability

0.2/-

0.2/-

0.3/-

0.4/-

0.3/-

0.3/-

0.4/-

%F.S.

Unloaded resonant frequency

160

160

130

80

X160/Y140

X160/Z140

X150/Y130/Z90

Hz±20%

Load capacity Horizontal

0.5

0.5

0.4

0.3

0.4

0.4

0.3

kg

Vertical 0.03 0.03 0.02 0.01 0.02 0.01 0.01
Inverted 0.5 0.03 0.02 0.01 0.4 0.02 0.01
El.capacitance

7.2

7.2

14.4

21.6

7.2/axis

7.2/axis

7.2/axis

μF±20%

Material

Steel, Al

Steel, Al

Steel, Al

Steel, Al

Steel, Al

Steel,AI

Steel, Al

Note: Above are measured using E00/E01 piezo controllers. The max driving voltage can be -20V~150V; Recommended voltage 0~120V for high-reliability and long-term use.

Mounting Method Horizontal Mounting Vertical Mounting Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table



  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity
  Place the PZT platform horizontally, but the moving surface is located below the PZT platform
Diagram %E4%B8%89%E5%90%911 %E8%8B%B1 %E4%B8%89%E5%90%912 %E8%8B%B1 %E4%B8%89%E5%90%913 %E8%8B%B1
Note When the mounting method is selected as vertical mounting, pay attention to the outlet port
