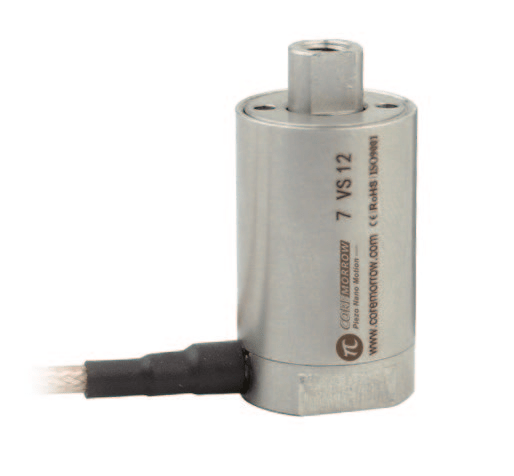

VS12 Preloaded Linear Actuators, OD12mm, 0-150V

Low voltage preloaded piezo actuator is obtained by encapsulating the low-voltage piezo stacks inside, the outer part is protected by stainless steel casing, and the pre-tightening force is applied to the piezo stacks through the mechanical casing, the higher internal machinery preload force is suitable for high load, high dynamic applications. It could output the displacement and output generated by the piezo stack and could withstand certain tensile force.

Description

Characteristics

Nanoscale resolution

Small size

Max displacement 152μm

Max blocking force 1200N

Applications

Measurement, interference

Active and adaptive optics

Shock absorption

Precision machinery and machining

Technicale data
Models	Stroke [μm]±10%*	Stiffness [N/μm]±20%	Push/pull force [N]	EI.capacitance [μF]±20%	Resonant frequency [kHz]±20%	Weight [g]±5%	Length L [mm]±0.3
PSt150/7/7 VS12	9	120	1200/200	0.7	40	34.6 (lt’s about 13.2 for the version with black and red wires)	19.5
PSt150/7/20 VS12	19	60	1200/200	1.8	30	18.7（with black and red wires）	28.5
PSt150/7/40 VS12	38	25	1200/200	3.6	20	–	46.5
PSt150/7/60 VS12	57	15	1200/200	5.4	15	–	64.5
PSt150/7/80 VS12	76	12	1200/200	7.2	12	46.8	82.5
PSt150/7/100 VS12	95	10	1200/200	9	10	–	100.6
PSt150/7/120 VS12	114	8	1200/200	11	8	241.2	118.6
PSt150/7/140 VS12	133	7	1200/200	13	6	–	136.6
PSt150/7/160 VS12	152	6	1200/200	15	5	99.9	154.6

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Drawings ( Click on the picture to enlarge it )

Standard end	Optional ends
Internal	Plane		External		Sphere

See above drawing
See above drawing	Symbol	Parameter	Symbol	Parameter	Symbol	Parameter
	A：	Ø12	A:	Ø12	A：	Ø12
	B:	Ø5	B:	Ø5	B：	Ø5
	C3:	4±0.5	C1:	7±0.5	C2：	5±0.5
			D:	M4	G：	SR1.5
			E:	SW4mm
			F:	2
