Description
Applications
| Fiber stretching | Active vibration control | Piezo dispensing valve | Precision positioning |
| Piezo Deformable Mirror | Piezo gripper |
| Technical Data | |||||||||
| Models | Coating color | Dimensions[1] a×b×L[mm] | Max./Stroke[2] [μm]±15% | El.capacitance [μF]±20% | Stiffness [N/μm]±10% | Resonant frequency [kHz] | Blocking Force [N] | Mass [g]±5%* | |
| PSt50/1.2×1.2/1.7H | Gray | 1.22×1.3×1.7 | 1/0.8 | 0.045 | 50 | 100 | 80 | 0.09 | |
| PSt100/1.65×1.65/5H | Gray | 1.66×1.72×5 | 4/3.2 | 0.090 | 30 | 50 | 120 | 0.48 | |
| PSt150/2×3/5H | Gray | 2.1×3.1×5 | 6.5/5 | 0.1 | 45 | 150 | 300 | 0.4 | |
| PSt150/2×3/5L | Green | 3×4×5 | |||||||
| PSt150/2×3/7H | Gray | 2.1×3.1×9 | 13/9 | 0.17 | 25 | 100 | 300 | 0.6 | |
| PSt150/2×3/7L | Green | 3×4×9 | |||||||
| PSt150/2×3/10H | Gray | 2.1×3.1×10 | 13/9 | 0.18 | 22 | 100 | 300 | 0.7 | |
| PSt150/2×3/10L | Green | 3×4×10 | |||||||
| PSt150/2×3/20H | Gray | 2.1×3.1×18 | 28/20 | 0.42 | 12 | 50 | 300 | 1.2 | |
| PSt150/2×3/20L | Green | 3×4×18 | |||||||
| PSt150/3.5×3.5/7H | Gray | 3.6×3.6×9 | 13/9 | 0.35 | 50 | 100 | 800 | 1.05 | |
| PSt150/3.5×3.5/7L | Green | 4.5×4.5×9 | |||||||
| PSt150/3.5×3.5/20H | Gray | 3.6×3.6×18 | 28/20 | 0.8 | 25 | 50 | 800 | 2.1 | |
| PSt150/3.5×3.5/20L | Green | 4.5×4.5×18 | |||||||
| PSt150/5×5/7H | Gray | 5.1×5.1×9 | 13/9 | 0.8 | 120 | 100 | 1600 | 2 | |
| PSt150/5×5/7L | Green | 6×6×9 | |||||||
| PSt150/5×5/20H | Gray | 5.1×5.1×18 | 28/20 | 1.8 | 60 | 50 | 1600 | 3.8 | |
| PSt150/5×5/20L | Green | 6×6×18 | 28/20 | 1.8 | 60 | 50 | 1600 | 4.1 | |
| PSt150/5×5/20 | Green | 6×6×20 | 28/20 | 1.5 | 60 | 50 | 1600 | 4.1 | |
| PSt150/5×5/40L | Green | 6×6×36 | 56/40 | 3.6 | 30 | 25 | 1600 | 8.21 | |
| PSt150/7×7/7H | Gray | 7.1×7.1×9 | 13/9 | 1.4 | 240 | 100 | 3500 | 3.8 | |
| PSt150/7×7/7L | Green | 8×8×9 | |||||||
| PSt150/7×7/20H | Gray | 7.1×7.1×18 | 28/20 | 3.4 | 120 | 50 | 3500 | 8 | |
| PSt150/7×7/20L | Green | 8×8×18 | |||||||
| PSt150/10×10/7H | Gray | 10.1×10.1×9 | 13/9 | 3.0 | 500 | 100 | 7000 | 8.1 | |
| PSt150/10×10/7L | Green | 11×11×9 | |||||||
| PSt150/10×10/20H | Gray | 10.1×10.1×18 | 28/20 | 6.5 | 250 | 50 | 7000 | 14.8 | |
| PSt150/10×10/20L | Green | 11×11×18 | |||||||
| PSt150/14×14/20H | Gray | 14.1×14.1×18 | 28/20 | 14.5 | 500 | 47 | 15000 | 31.3 | |
| PSt150/14×14/20L | Green | 15×15×18 | |||||||
| PSt150/25×25/15H | Gray | 25.1×25.1×20 | 19/15 | 30.5 | 1282 | 50 | 20000 | 109.55 | |
| PSt150/25×25/15L | Green | 26×26×20 | |||||||
Notes: In standard lead, the red line is positive. About PSt50/PSt100 series, the red line is negative.
[1] The dimensions of piezo stack is not include thickness of resin. The single side thickness of Gray resin is 50μm and the green resin is 0.5mm, outlet size single side +1mm, tolerance +/-0.2mm, the heightness tolerance +/-0.05mm.
[2] PSt150: stroke is under 0~150V, Max. stroke is under -30~150V. Recommended voltage 0-120V for long-time high reliability. PSt50: Max. stroke is under 0~50V. PSt100: Max. stroke is under 0~100V.

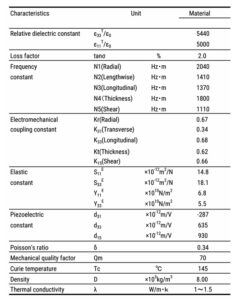

Material Constant of Piezoelectric Ceramics
